Adjustable precision shunt regulator, SOT-23 package, offering an output voltage range from 2.495V to 36V with a 1% tolerance. Features a maximum input voltage of 37V and a maximum output current of 100mA. Operates across a wide temperature range of -40°C to 125°C. This RoHS compliant component requires a minimum cathode current of 700µA.
PackageSOT-23
Quick Jump:
Technical Specifications
Texas Instruments TL431AIDBZR technical specifications.
General
Package/Case
SOT-23
Cathode Current
700uA
Lead Free
Lead Free
Max Input Voltage
37V
Min Input Voltage
2.495V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Max Output Voltage
36V
Min Output Voltage
2.495V
Number of Channels
1
Output Current
100mA
Output Type
Adjustable
Output Voltage
36V
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Type
Shunt, Adjustable
Reference Voltage
36V
RoHS Compliant
Yes
Tolerance
1%
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TL431AIDBZR Datasheet
Download the complete datasheet for Texas Instruments TL431AIDBZR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

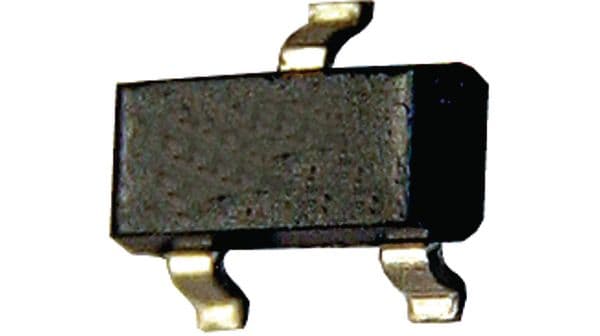

Product Images
