Technical Specifications
Texas Instruments TL431BIDBZT technical specifications.
General
Package/Case
SOT-23-3
Cathode Current
700uA
Lead Free
Lead Free
Max Input Voltage
37V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Max Output Voltage
36V
Min Output Voltage
2.495V
Output Current
100mA
Output Type
Adjustable
Output Voltage
36V
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reference Type
Shunt, Adjustable
Reference Voltage
36V
RoHS Compliant
Yes
Tolerance
0.5%
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TL431BIDBZT Datasheet
Download the complete datasheet for Texas Instruments TL431BIDBZT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

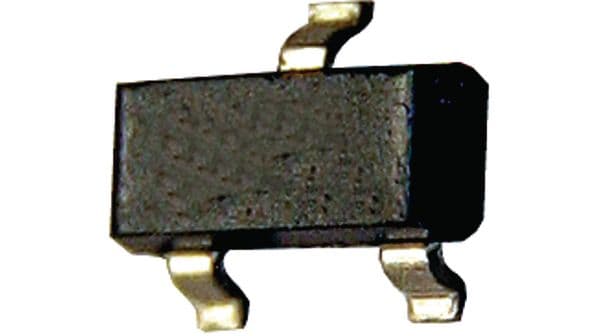

Product Images
