Adjustable precision shunt regulator, featuring a 36V reference voltage with 0.5% tolerance. Operates with a minimum input voltage of 2.495V and a maximum of 37V, supporting an output current of up to 100mA. Packaged in a compact SOT-89 (4.5mm L x 2.5mm W x 1.5mm H) with a cathode current of 700µA. This RoHS compliant component is suitable for operation across a wide temperature range of -40°C to 125°C.
PackageSOT-89
Quick Jump:
Technical Specifications
Texas Instruments TL431BIPK technical specifications.
General
Package/Case
SOT-89
Cathode Current
700uA
Height
1.5mm
Lead Free
Lead Free
Length
4.5mm
Max Input Voltage
37V
Min Input Voltage
2.495V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Max Output Voltage
36V
Min Output Voltage
2.5V
Number of Channels
1
Output Current
100mA
Output Voltage
36V
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Type
Shunt, Adjustable
Reference Voltage
36V
RoHS Compliant
Yes
Tolerance
0.5%
Width
2.5mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TL431BIPK Datasheet
Download the complete datasheet for Texas Instruments TL431BIPK to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

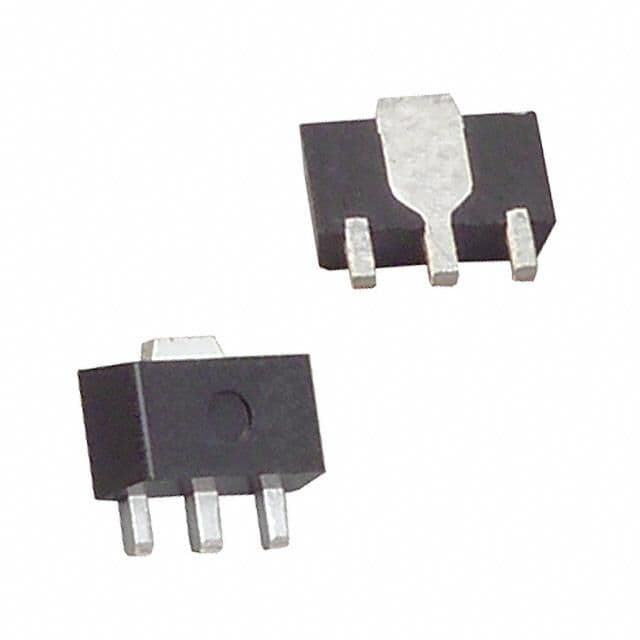

Product Images
