Technical Specifications
Texas Instruments TL431BIPKG3 technical specifications.
General
Package/Case
SOT-89
Cathode Current
700uA
Lead Free
Lead Free
Max Input Voltage
37V
Min Input Voltage
2.495V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Max Output Voltage
36V
Min Output Voltage
2.5V
Number of Channels
1
Output Current
100mA
Output Voltage
36V
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Type
Shunt, Adjustable
Reference Voltage
36V
RoHS Compliant
Yes
Series
TL431B
Termination
SMD/SMT
Tolerance
0.5%
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TL431BIPKG3 Datasheet
Download the complete datasheet for Texas Instruments TL431BIPKG3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

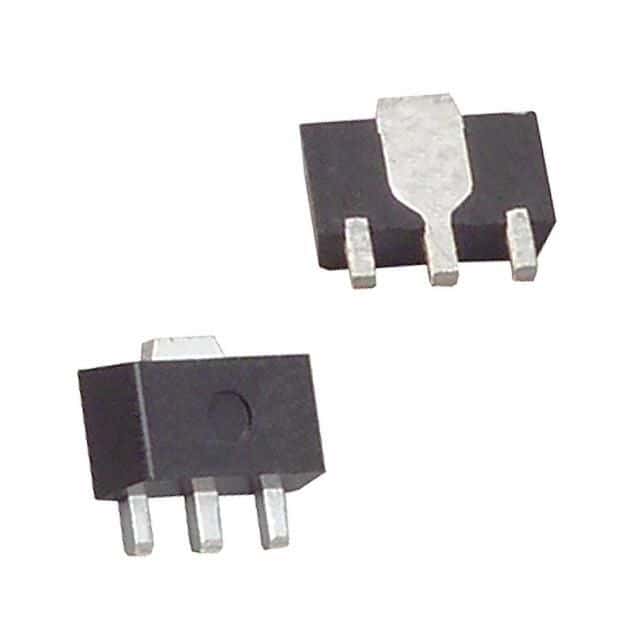

Product Images
