Technical Specifications
Texas Instruments TL431CDBZR technical specifications.
General
Package/Case
SOT-23-3
Cathode Current
1mA
Lead Free
Lead Free
Max Input Voltage
37V
Min Input Voltage
2.483V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Max Output Voltage
36V
Number of Channels
1
Output Current
100mA
Output Voltage
36V
Package Quantity
1
Packaging
Tape and Reel
Reach SVHC Compliant
No
Reference Type
Shunt, Adjustable
Reference Voltage
36V
RoHS Compliant
Yes
Tolerance
2%
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TL431CDBZR Datasheet
Download the complete datasheet for Texas Instruments TL431CDBZR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

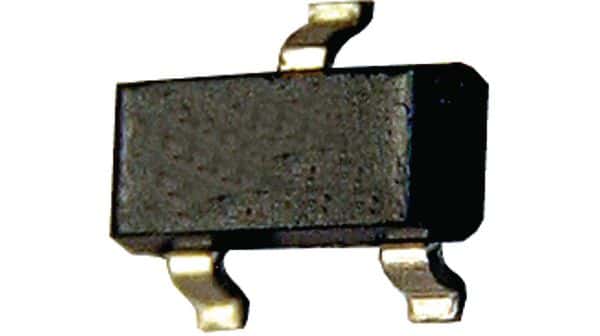

Product Images
