PackageTO-92
Current Rating100mA
Quick Jump:
Technical Specifications
Texas Instruments TL431ILP technical specifications.
General
Package/Case
TO-92
Current Rating
100mA
Halogen Free
Halogen Free
Height
3.68mm
Lead Free
Lead Free
Length
4.83mm
Max Input Voltage
37V
Min Input Voltage
2.495V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Max Output Voltage
36V
Min Output Voltage
2.5V
Package Quantity
1000
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Type
Shunt, Adjustable
Reference Voltage
36V
RoHS Compliant
Yes
Series
TL431
Weight
0.00752oz
Width
3.43mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TL431ILP Datasheet
Download the complete datasheet for Texas Instruments TL431ILP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

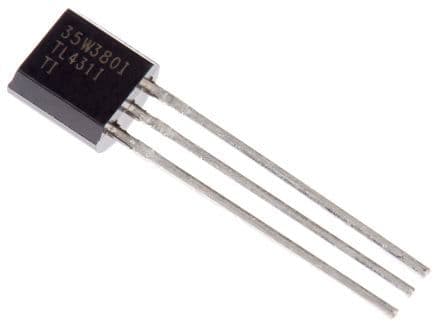

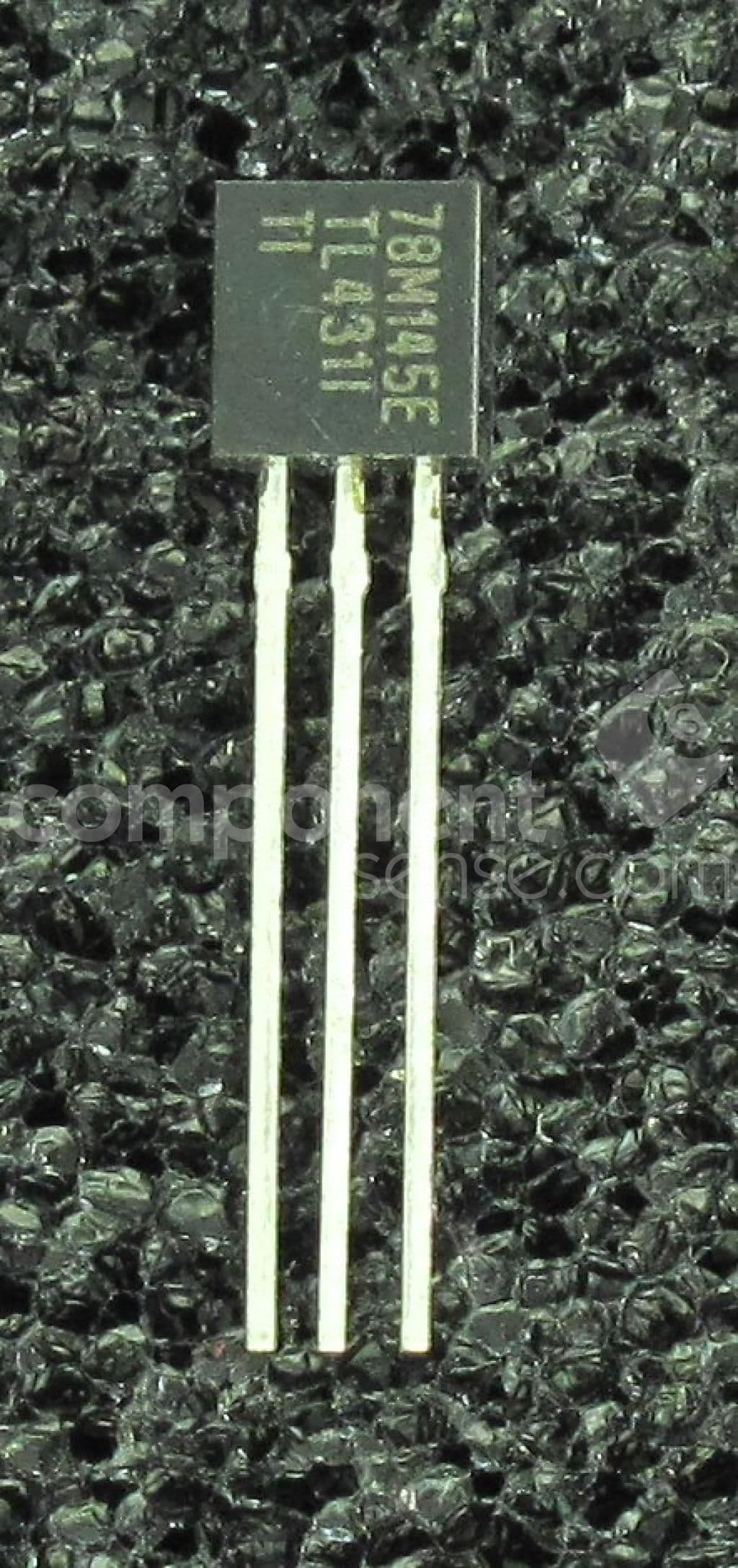

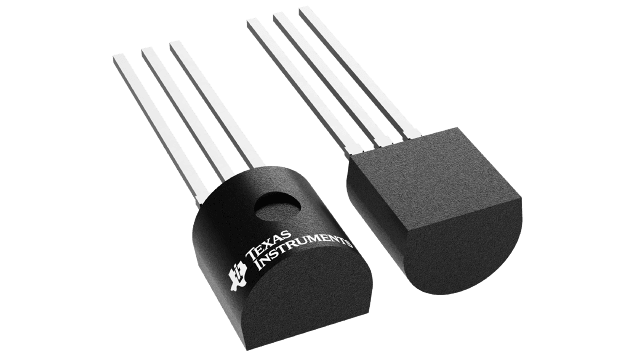

Product Images
