Voltage mode PWM controller featuring a 45% maximum duty cycle and 300kHz operating frequency. This integrated circuit offers two outputs, each capable of 200mA output current and a 40V output voltage. Operating within a 7V to 40V supply voltage range, it boasts a 5V reference voltage and a 40ns fall time. Packaged in a 16-pin PDIP, this RoHS compliant component is suitable for flyback and push-pull topologies.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments TL494CN datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™

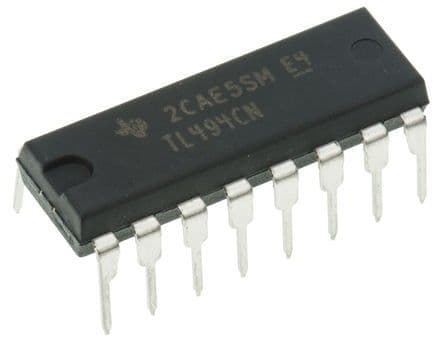

Texas Instruments TL494CN technical specifications.
| Package/Case | N |
| Duty Cycle | 45% |
| Fall Time | 40ns |
| Frequency | 300kHz |
| Height | 4.57mm |
| Lead Free | Lead Free |
| Length | 19.3mm |
| Max Duty Cycle | 45% |
| Max Frequency | 300kHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 40V |
| Min Supply Voltage | 7V |
| Number of Outputs | 2 |
| Output Current | 200mA |
| Output Voltage | 40V |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reference Voltage | 5V |
| RoHS Compliant | Yes |
| Tolerance | 5% |
| Topology | Flyback, Push-Pull |
| Weight | 0.03357oz |
| Width | 6.35mm |
| RoHS | Compliant |
