High-accuracy, positive linear voltage regulator with a fixed 5V output and 1.5A maximum output current. Features a 2V dropout voltage and 1% output voltage accuracy, operating from a 7V to 25V input range. This through-hole component is housed in a TO-220 package, suitable for applications with operating temperatures from 0°C to 125°C. Offers 85dB power supply rejection ratio and is RoHS compliant.
PackageTO-220
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TL780-05KCS technical specifications.
General
Accuracy
1%
Package/Case
TO-220
Dropout Voltage
2V
Height
8.7mm
Lead Free
Lead Free
Length
10.16mm
Max Input Voltage
25V
Min Input Voltage
7V
Max Operating Temperature
125°C
Min Operating Temperature
0°C
Max Output Current
1.5A
Mount
Through Hole
Nominal Output Voltage
5V
Number of Outputs
1
Number of Regulators
1
Output Current
1.5A
Output Type
Fixed
Output Voltage
5V
Output Voltage Accuracy
1%
Package Quantity
50
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
85dB
Quiescent Current
8mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Weight
0.067197oz
Width
4.58mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TL780-05KCS Datasheet
Download the complete datasheet for Texas Instruments TL780-05KCS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

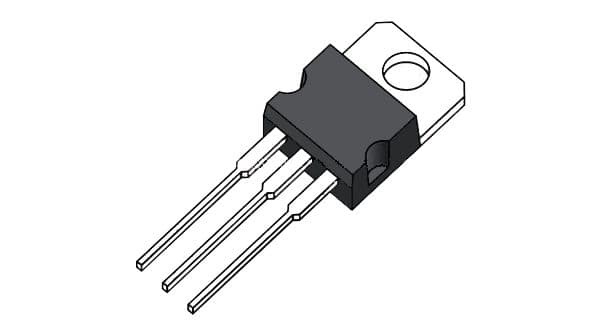

Product Images
