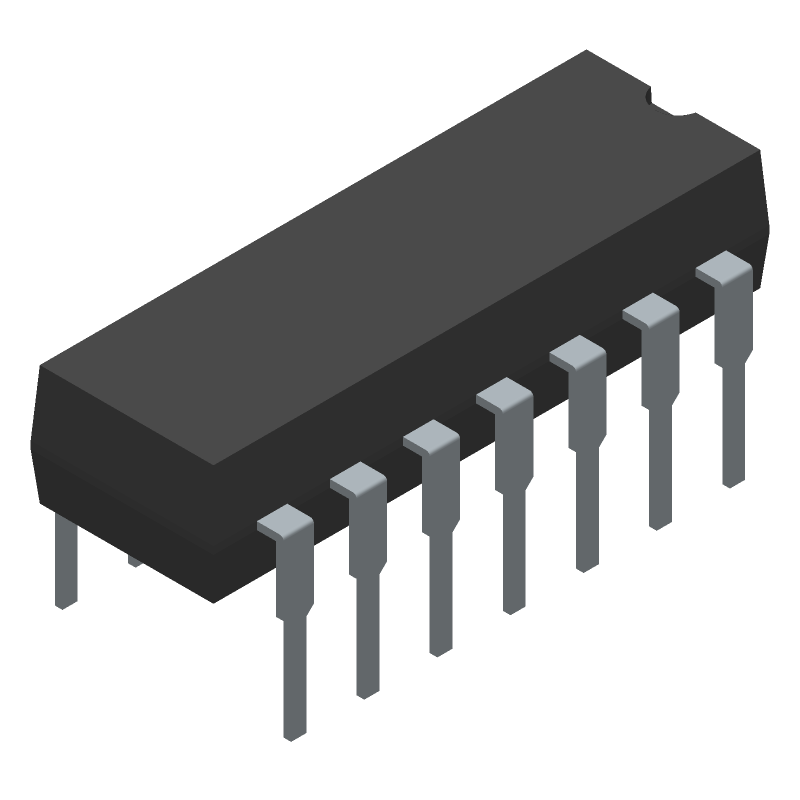

Quad operational amplifier featuring LinCMOS™ technology. This general-purpose amplifier offers a 1.7MHz gain bandwidth product and a 3.6V/µs slew rate. With four independent amplifiers, it boasts a 65dB common mode rejection ratio and a low input bias current of 60pA. Operating from 3V to 16V supply voltages, it is available in a 14-PDIP package and is RoHS compliant.
PackageN
Current8mA
Power1.575W
Quick Jump:
Technical Specifications
Texas Instruments TLC274ACN technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 1.7MHz |
| Package/Case | N |
| Common Mode Rejection Ratio | 65dB |
| Gain Bandwidth Product | 1.7MHz |
| Input Bias Current | 60pA |
| Input Offset Voltage (Vos) | 5mV |
| Lead Free | Lead Free |
| Max I/O Voltage | 5mV |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 16V |
| Min Supply Voltage | 3V |
| Nominal Gain Bandwidth Product | 1.7MHz |
| Number of Amplifiers | 4 |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Operating Supply Current | 3.8mA |
| Output Current per Channel | 30mA |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Power Dissipation | 1.575W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | LinCMOS™ |
| Slew Rate | 3.6V/µs |
| Supply Current | 8mA |
| Unity Gain Bandwidth Product | 1.7MHz |
| Voltage Gain | 87.23dB |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TLC274ACN Datasheet
Download the complete datasheet for Texas Instruments TLC274ACN to view detailed technical specifications.
