Dual precision operational amplifier featuring single-supply operation and low power consumption. This general-purpose op amp offers a 85kHz bandwidth and a 0.05V/µs slew rate, ideal for various analog signal processing applications. With a low operating supply current of 29µA per channel and a 1.1mV input offset voltage, it provides efficient and accurate performance. Packaged in an 8-TSSOP for surface mounting, this lead-free and RoHS compliant component operates across a wide temperature range of -40°C to 85°C.
PackageTSSOP
Current46uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TLC27L2IPW technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
85kHz
Package/Case
TSSOP
Common Mode Rejection Ratio
65dB
Gain Bandwidth Product
85kHz
Input Bias Current
0.7pA
Input Offset Voltage (Vos)
1.1mV
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
16V
Min Supply Voltage
4V
Mount
Surface Mount
Number of Channels
2
Number of Circuits
2
Operating Supply Current
29uA
Output Current per Channel
30mA
Package Quantity
150
Packaging
Rail/Tube
Radiation Hardening
No
RoHS Compliant
Yes
Series
LinCMOS™
Slew Rate
0.05V/µs
Supply Current
46uA
Voltage Gain
113.62dB
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TLC27L2IPW Datasheet
Download the complete datasheet for Texas Instruments TLC27L2IPW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

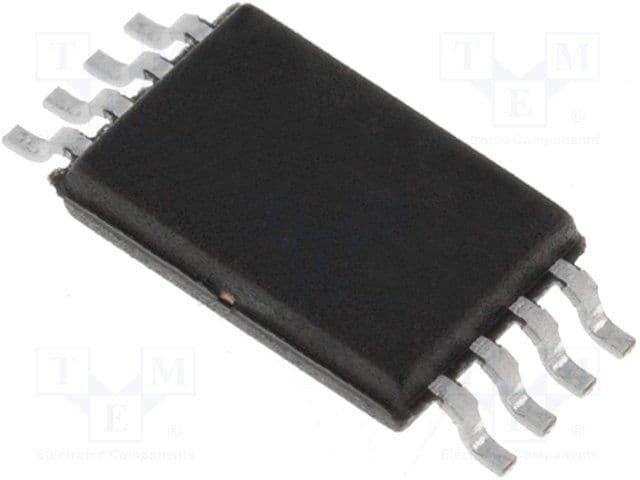

Product Images
