Quad-channel, general-purpose operational amplifier featuring an 85kHz gain bandwidth product and 0.03V/µs slew rate. This IC offers a wide operating voltage range from 3V to 16V, with a low supply current of 57µA per channel. It boasts a 65dB common mode rejection ratio and a 10mV input offset voltage. Packaged in a 14-pin TSSOP, this RoHS compliant component operates from -40°C to 85°C.
PackageTSSOP
Current92uA
Power700mW
Quick Jump:
Technical Specifications
Texas Instruments TLC27L4CPWG4 technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 85kHz |
| Package/Case | TSSOP |
| Common Mode Rejection Ratio | 65dB |
| Gain Bandwidth Product | 85kHz |
| Input Bias Current | 600pA |
| Input Offset Voltage (Vos) | 10mV |
| Lead Free | Lead Free |
| Max I/O Voltage | 10mV |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 16V |
| Min Supply Voltage | 3V |
| Nominal Gain Bandwidth Product | 85kHz |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Operating Supply Current | 57uA |
| Output Current per Channel | 30mA |
| Package Quantity | 90 |
| Packaging | Rail/Tube |
| Power Dissipation | 700mW |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | LinCMOS™ |
| Slew Rate | 0.03V/µs |
| Supply Current | 92uA |
| Unity Gain Bandwidth Product | 85kHz |
| Voltage Gain | 114.32dB |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TLC27L4CPWG4 Datasheet
Download the complete datasheet for Texas Instruments TLC27L4CPWG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

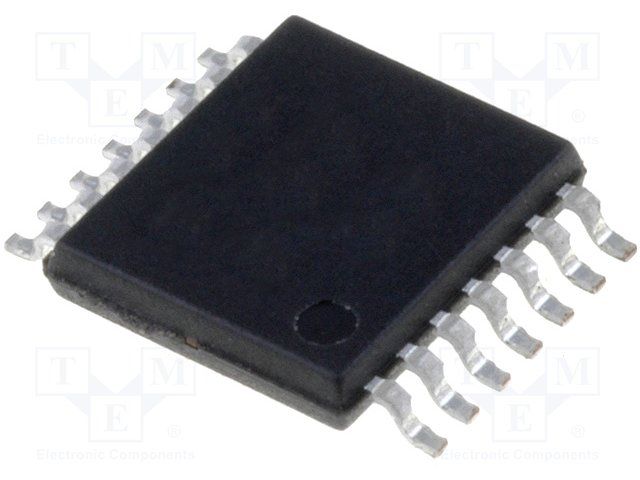

Product Images
