Dual-channel, general-purpose operational amplifier with a 525kHz bandwidth and 0.43V/µs slew rate. Features a low 285µA operating supply current and 30mA output current per channel. Operates from 4V to 16V supply voltage with a 65dB common mode rejection ratio. Housed in an 8-SOIC package, this surface-mount component is rated for industrial temperatures from -40°C to 85°C.
PackageD
Current600uA
Power725mW
Quick Jump:
Technical Specifications
Texas Instruments TLC27M2ID technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
525kHz
Package/Case
D
Common Mode Rejection Ratio
65dB
Gain Bandwidth Product
525kHz
Input Bias Current
60pA
Input Offset Voltage (Vos)
10mV
JESD-30 Code
R-PDSO-G8
Lead Free
Lead Free
Max I/O Voltage
10mV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
16V
Min Supply Voltage
4V
Moisture Sensitivity Level
1
Nominal Gain Bandwidth Product
525kHz
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Number of Functions
2
Operating Supply Current
285uA
Output Current per Channel
30mA
Package Body Material
Plastic
Package Quantity
75
Package Shape
Rectangular
Packaging
Rail/Tube
Peak Reflow Temperature (Cel)
260°C
Power Dissipation
725mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
LinCMOS™
Slew Rate
0.43V/µs
Supply Current
600uA
Surface Mount
Yes
Technology
CMOS
Temperature Grade
INDUSTRIAL
Terminal Finish
Gold
Terminal Form
Gull Wing
Terminal Position
DUAL
Unity Gain Bandwidth Product
525kHz
Voltage Gain
104.61dB
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TLC27M2ID Datasheet
Download the complete datasheet for Texas Instruments TLC27M2ID to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

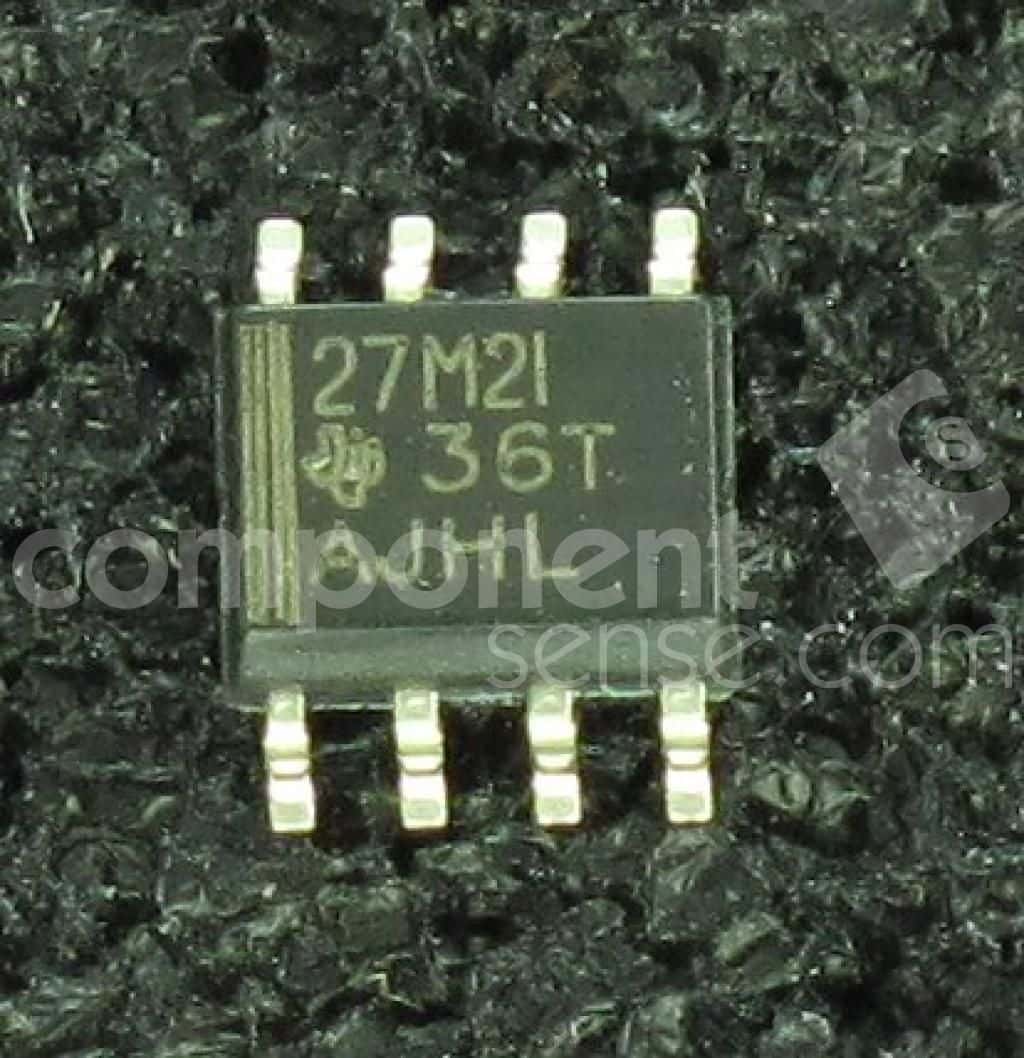

Product Images
