Quad precision, single-supply, low-power operational amplifier featuring a 525kHz gain bandwidth product and 0.43V/µs slew rate. This general-purpose amplifier offers a 10mV input offset voltage and 2nA input bias current, with a 65dB common mode rejection ratio. Operating from a 4V to 16V supply, it consumes 570µA per channel and provides 30mA output current per channel. Packaged in a 14-SOIC (D) case, it operates from 0°C to 70°C and is RoHS compliant.
PackageD
Current1.2mA
Power950mW
Quick Jump:
Technical Specifications
Texas Instruments TLC27M4ID technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
525kHz
Package/Case
D
Common Mode Rejection Ratio
65dB
Gain Bandwidth Product
525kHz
Input Bias Current
2nA
Input Offset Voltage (Vos)
10mV
Lead Free
Lead Free
Max I/O Voltage
10mV
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
16V
Min Supply Voltage
4V
Nominal Gain Bandwidth Product
525kHz
Number of Amplifiers
4
Number of Channels
4
Number of Circuits
4
Number of Elements
4
Operating Supply Current
570uA
Output Current per Channel
30mA
Package Quantity
50
Packaging
Rail/Tube
Power Dissipation
950mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
LinCMOS™
Slew Rate
0.43V/µs
Supply Current
1.2mA
Unity Gain Bandwidth Product
525kHz
Voltage Gain
104.61dB
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TLC27M4ID Datasheet
Download the complete datasheet for Texas Instruments TLC27M4ID to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

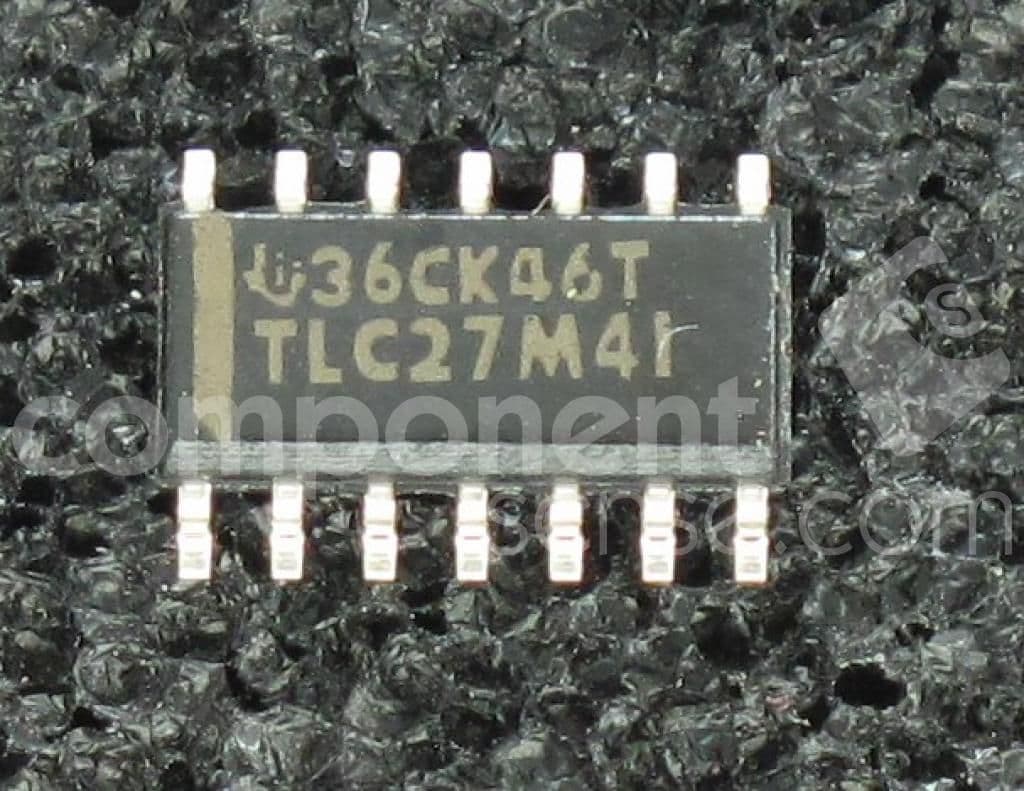

Product Images
