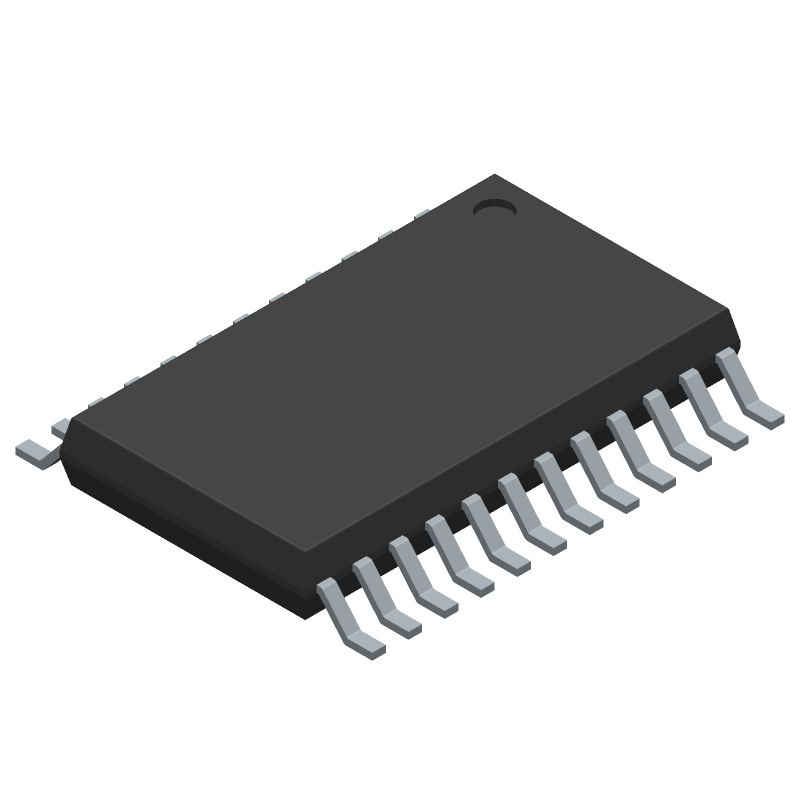

8-bit, 40 MSPS Analog-to-Digital Converter (ADC) with a single-ended input and internal Sample-and-Hold circuit. Features a 40 MSPS sampling rate, 1 LSB Integral Nonlinearity (INL), and 44dB Signal-to-Noise Ratio (SNR). Operates from a 4.75V to 5.25V supply voltage with a nominal supply current of 17mA, consuming a maximum of 85mW. Packaged in a 24-TSSOP, this RoHS compliant component is suitable for operation between -40°C and 85°C.
PackageTSSOP
PolarityUnipolar
Power85mW
Quick Jump:
Technical Specifications
Texas Instruments TLC5540IPWRG4 technical specifications.
General
Package/Case
TSSOP
Conversion Rate
40000KS/s
Input Type
SINGLE-ENDED
Integral Nonlinearity (INL)
1LSB
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
85mW
Max Supply Voltage (DC)
5.25V
Min Supply Voltage (DC)
4.75V
Nominal Supply Current
17mA
Number of Analog Inputs
1
Number of Bits
8
Number of Channels
1
Number of Converters
1
Number of Inputs
1
Operating Supply Voltage
5.25V
Package Quantity
2000
Packaging
Tape and Reel
Polarity
Unipolar
Power Consumption
85mW
Resolution
8b
RoHS Compliant
Yes
Sampling Rate
40000000S/s
Signal to Noise Ratio (SNR)
44dB
Spurious-free dynamic range (SFDR)
42dB
Supply Type
Analog, Digital
Compliance
RoHS
Compliant
