Frequency2.1MHz
PackageSOIC
Current250uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TLC555QDR technical specifications.
General
Package/Case
SOIC
Frequency
2.1MHz
High Level Output Current
-10mA
Lead Free
Lead Free
Low Level Output Current
100mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
725mW
Max Supply Voltage
15V
Min Supply Voltage
5V
Mount
Surface Mount
Number of Timers/Counters
1
Operating Supply Current
360uA
Package Quantity
2500
Packaging
Tape and Reel
Power Dissipation
725mW
Quiescent Current
250uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
LinCMOS™
Supply Current
250uA
Weight
0.002677oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TLC555QDR Datasheet
Download the complete datasheet for Texas Instruments TLC555QDR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

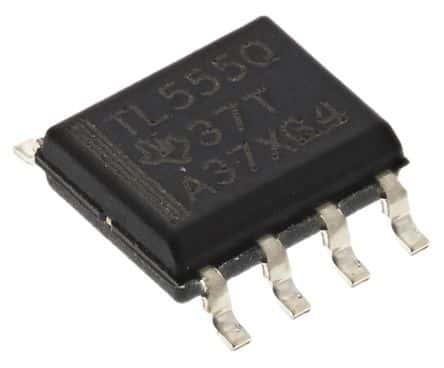

Product Images
