16-channel constant-current LED sink driver with I²C interface. Features 120mA output current per channel, 17V output voltage, and 1MHz operating frequency. Operates from a 3V to 5.5V supply voltage with a maximum supply current of 37mA. Packaged in a 28-TSSOP with dimensions of 9.7mm length, 4.4mm width, and 1.15mm height. Suitable for operation between -40°C and 85°C.
Frequency1 MHz
PackageTSSOP
Current3.7mA
Power1.207W
Quick Jump:
Technical Specifications
Texas Instruments TLC59116IPWR technical specifications.
General
Package/Case
TSSOP
Dimming
I²C
Height
1.15mm
Lead Free
Lead Free
Length
9.7mm
Low Level Output Current
30mA
Max Input Voltage
5.5V
Min Input Voltage
3V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1.207W
Max Supply Current
37mA
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Number of Outputs
16
Number of Segments
16
Operating Frequency
1 MHz
Output Current
120mA
Output Current per Channel
120mA
Output Voltage
17V
Package Quantity
2000
Packaging
Tape and Reel
Power Dissipation
1.207W
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
3.7mA
Topology
Boost
Weight
0.004145oz
Width
4.4mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TLC59116IPWR Datasheet
Download the complete datasheet for Texas Instruments TLC59116IPWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

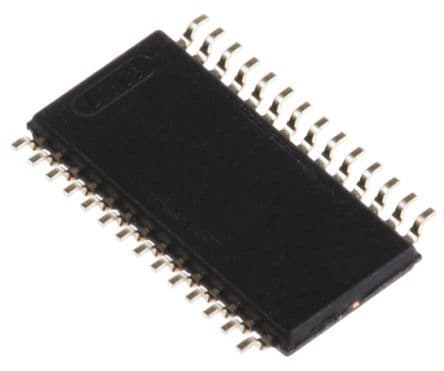

Product Images
