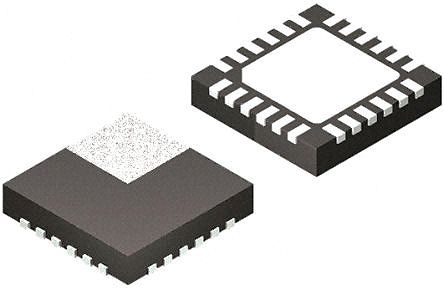

16-channel constant current LED driver with 4-channel grouped delay, operating at 35 MHz. Features 17V maximum output voltage and 45mA maximum output current per channel. Input voltage range is 3V to 5.5V, with a maximum supply current of 34mA. Housed in a 4.15mm x 4.15mm x 0.95mm VQFN package, this RoHS compliant component operates from -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments TLC59282RGET datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments TLC59282RGET technical specifications.
| Package/Case | VQFN |
| Frequency | 35MHz |
| Height | 0.95mm |
| High Level Output Current | -1mA |
| Lead Free | Lead Free |
| Length | 4.15mm |
| Low Level Output Current | 1mA |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 3V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 45mA |
| Max Output Voltage | 17V |
| Max Supply Current | 34mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Number of Outputs | 16 |
| Number of Segments | 16 |
| Operating Frequency | 35 MHz |
| Output Current | 45mA |
| Output Voltage | 17V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 34mA |
| Topology | Boost |
| Width | 4.15mm |
| RoHS | Compliant |
