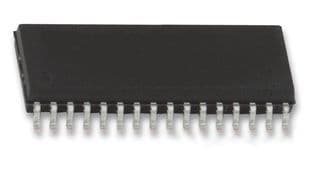

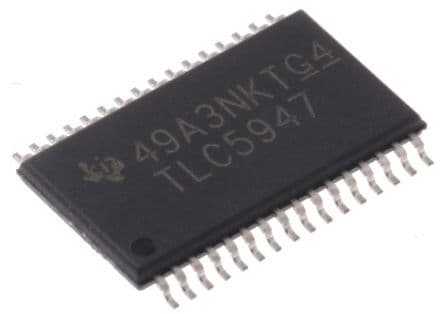

24-channel, 12-bit PWM LED driver IC featuring an internal oscillator. This integrated circuit offers 24 independently controlled output channels, each capable of delivering up to 30mA of current at a maximum output voltage of 30V. Operating with a supply voltage range of 3V to 5.5V, it supports an operating frequency of 30 MHz. The device is housed in a 32-HTSSOP package, ensuring lead-free and RoHS compliance, and operates across a temperature range of -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments TLC5947DAP datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | HTSSOP |
| Frequency | 4MHz |
| High Level Output Current | -3mA |
| Lead Free | Lead Free |
| Low Level Output Current | 3mA |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 3V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 5.318W |
| Max Supply Current | 90mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Number of Outputs | 24 |
| Number of Segments | 24 |
| Operating Frequency | 30 MHz |
| Output Current | 30mA |
| Output Voltage | 30V |
| Package Quantity | 46 |
| Packaging | Rail/Tube |
| Power Dissipation | 5.318W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 90mA |
| Weight | 0.006388oz |
| RoHS | Compliant |
