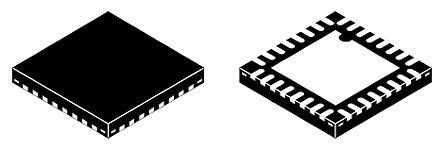

24-channel, 12-bit PWM LED driver IC featuring an internal oscillator. Operates with a 3V to 5.5V supply voltage and offers 30mA maximum output current per channel with a 30V maximum output voltage. This VQFN packaged component supports an operating frequency of 30MHz and a 4MHz oscillator frequency, with a maximum power dissipation of 3.482W. Designed for a wide temperature range of -40°C to 85°C, it is RoHS compliant and available in tape and reel packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments TLC5947RHBT datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments TLC5947RHBT technical specifications.
| Package/Case | VQFN |
| Frequency | 4MHz |
| Height | 0.95mm |
| High Level Output Current | -3mA |
| Lead Free | Lead Free |
| Length | 5.15mm |
| Low Level Output Current | 3mA |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 3V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 30mA |
| Max Output Voltage | 30V |
| Max Power Dissipation | 3.482W |
| Max Supply Current | 90mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Number of Outputs | 24 |
| Number of Segments | 24 |
| Operating Frequency | 30 MHz |
| Output Current | 30mA |
| Output Voltage | 30V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 3.482W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 90mA |
| Weight | 0.002533oz |
| Width | 5.15mm |
| RoHS | Compliant |
