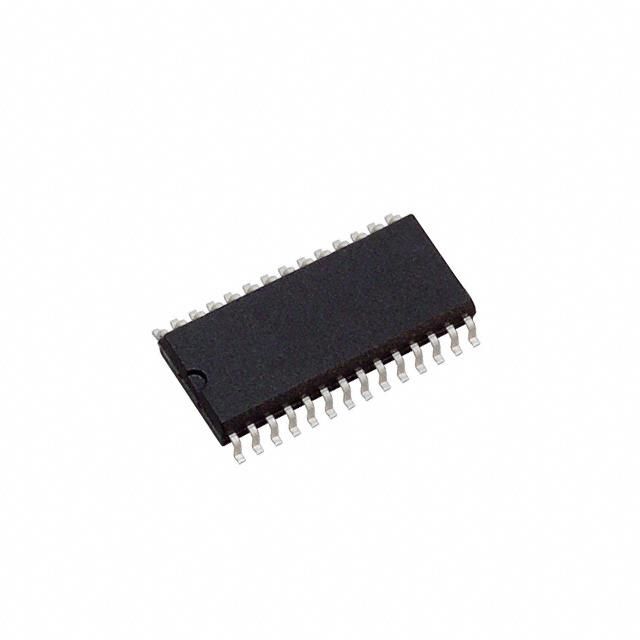

The TLC7135CDWRG4 is a 14-bit analog-to-digital converter with a single input channel. It operates within a supply voltage range of 4V to 6V and consumes a nominal supply current of 1mA. The device is packaged in a lead-free SOIC-28 package and is compliant with RoHS regulations. It has a maximum operating temperature of 70°C and a minimum operating temperature of 0°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments TLC7135CDWRG4 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOIC |
| Display Type | LCD |
| Integral Nonlinearity (INL) | 0.5LSB |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage (DC) | 6V |
| Min Supply Voltage (DC) | 4V |
| Nominal Supply Current | 1mA |
| Number of Bits | 14 |
| Number of Inputs | 1 |
| Operating Supply Current | 1mA |
| Operating Supply Voltage | 5.25V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Power Consumption | 5mW |
| Power Dissipation | 5mW |
| Resolution | 14b |
| RoHS Compliant | Yes |
| Weight | 0.025778oz |
| RoHS | Compliant |
