The TLE2072AMFKB is a dual BIFET operational amplifier from Texas Instruments, featuring a gain bandwidth product of 9.4MHz. It operates over a dual supply voltage range of 2.25V to 19V and has a common mode rejection ratio of 70dB. The device is packaged in a LCC20 package and is not RoHS compliant due to containing lead. It has a maximum operating temperature of 125°C and a minimum operating temperature of -55°C.
PackageLCC
Quick Jump:
Technical Specifications
Texas Instruments TLE2072AMFKB technical specifications.
General
| Package/Case | LCC |
| Common Mode Rejection Ratio | 70dB |
| Gain Bandwidth Product | 9.4MHz |
| Input Bias Current | 175pA |
| Input Offset Voltage (Vos) | 3.5mV |
| Lead Free | Contains Lead |
| Max Dual Supply Voltage | 19V |
| Min Dual Supply Voltage | 2.25V |
| Max I/O Voltage | 3.5mV |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Nominal Gain Bandwidth Product | 9.4MHz |
| Number of Channels | 2 |
| Number of Elements | 2 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Slew Rate | 35V/µs |
| Technology | BIFET |
| Unity Gain Bandwidth Product | 9.4MHz |
| Voltage Gain | 106dB |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Texas Instruments TLE2072AMFKB Datasheet
Download the complete datasheet for Texas Instruments TLE2072AMFKB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

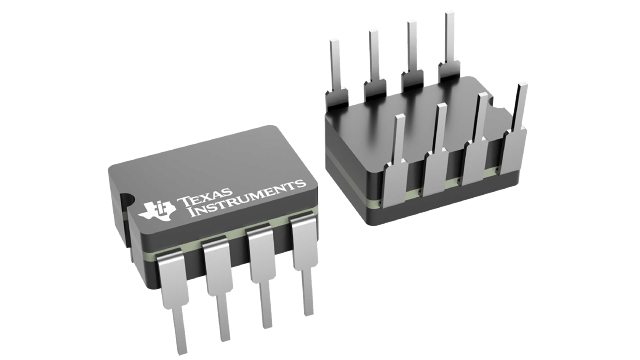

Product Images
