Positive fixed output linear voltage regulator with 1.8V nominal output voltage and 800mA maximum output current. Features a 1.2V dropout voltage and a maximum input voltage of 15V. Operates from a minimum supply voltage of 3.2V across a temperature range of -40°C to 125°C. Packaged in a 4-SOT-223 surface mount configuration, supplied on tape and reel. Offers 75dB power supply rejection ratio and 10mA quiescent current.
PackageSOT-223
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TLV1117-18CDCYR technical specifications.
General
Package/Case
SOT-223
Dropout Voltage
1.2V
Input Bias Current
5mA
Lead Free
Lead Free
Max Input Voltage
15V
Min Input Voltage
3.2V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
800mA
Min Output Voltage
1.8V
Min Supply Voltage
3.2V
Mount
Surface Mount
Nominal Output Voltage
1.8V
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
800mA
Output Type
Fixed
Output Voltage
1.8V
Package Quantity
2500
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
75dB
Quiescent Current
10mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TLV1117-18CDCYR Datasheet
Download the complete datasheet for Texas Instruments TLV1117-18CDCYR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

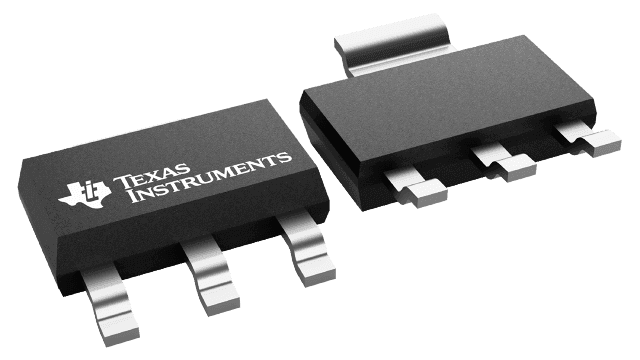

Product Images
