3.3V fixed positive LDO regulator, delivering up to 800mA output current. Features a 1.3V dropout voltage and a maximum input voltage of 15V. Operates across a -40°C to 125°C temperature range. Packaged in a 4-SOT-223 surface-mount case with gull-wing terminals. This lead-free component offers a 75dB power supply rejection ratio.
PackageSOT-223-4
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TLV1117-33CDCY technical specifications.
General
Package/Case
SOT-223-4
Dropout Voltage
1.3V
Height
1.6mm
Input Bias Current
5mA
JESD-30 Code
R-PDSO-G4
Lead Free
Lead Free
Length
6.5mm
Max Input Voltage
15V
Min Input Voltage
4.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
800mA
Max Output Voltage
3.365V
Min Output Voltage
3.3V
Moisture Sensitivity Level
2
Mount
Surface Mount
Nominal Output Voltage
3.3V
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
800mA
Output Type
Fixed
Output Voltage
3.3V
Package Body Material
Plastic
Package Quantity
80
Package Shape
Rectangular
Packaging
Rail/Tube
Peak Reflow Temperature (Cel)
260°C
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
75dB
Quiescent Current
10mA
Radiation Hardening
No
Reach SVHC Compliant
No
Regulator Type
FIXED POSITIVE LDO REGULATOR
RoHS Compliant
Yes
Surface Mount
Yes
Terminal Finish
Tin
Terminal Form
Gull Wing
Terminal Position
DUAL
Width
3.5mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TLV1117-33CDCY Datasheet
Download the complete datasheet for Texas Instruments TLV1117-33CDCY to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

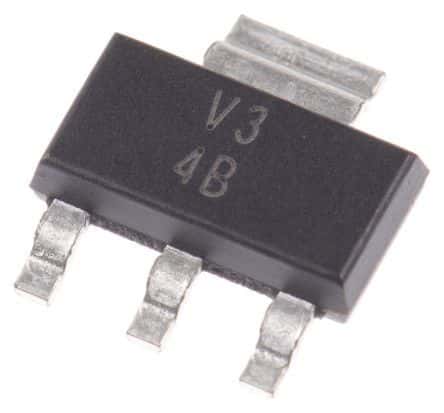

Product Images
