800mA positive linear voltage regulator with a fixed or adjustable output. Features a 1.2V dropout voltage and a maximum input voltage of 15V, operating from a minimum input of 2.7V. Offers a maximum output current of 800mA and an output voltage range from 1.238V to 13.75V. Packaged in a 4-SOT-223 surface mount case, this RoHS compliant component operates from -40°C to 125°C.
PackageSOT-223-4
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TLV1117IDCY technical specifications.
General
Package/Case
SOT-223-4
Dropout Voltage
1.2V
Height
1.6mm
Input Bias Current
5mA
Lead Free
Lead Free
Length
6.5mm
Min Current Limit
800mA
Max Input Voltage
15V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
800mA
Max Output Voltage
13.7V
Min Output Voltage
1.238V
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Current
800mA
Output Type
Fixed, Adjustable
Output Voltage
13.75V
Package Quantity
80
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
5mA
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Voltage
1.262V
RoHS Compliant
Yes
Width
3.5mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TLV1117IDCY Datasheet
Download the complete datasheet for Texas Instruments TLV1117IDCY to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

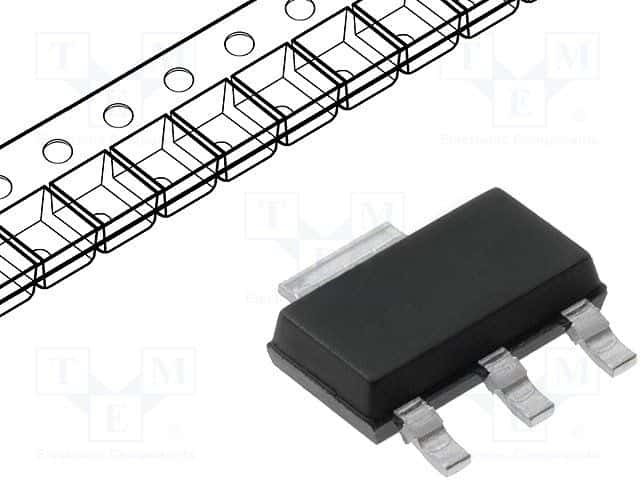

Product Images
