1A low-dropout linear voltage regulator with a fixed 1.2V output. Features a 570mV dropout voltage and 2% accuracy, operating from a 2V to 5.5V input. Delivers up to 1A output current with a quiescent current of 50µA. Housed in a 3-pin SOT-223 package, this RoHS compliant component operates from -40°C to 125°C.
PackageSOT-223
PolarityPositive
Power1.59W
Quick Jump:
Technical Specifications
Texas Instruments TLV1117LV12DCYR technical specifications.
General
| Accuracy | 2% |
| Package/Case | SOT-223 |
| Dropout Voltage | 570mV |
| Height | 1.7mm |
| Lead Free | Lead Free |
| Length | 6.7mm |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1A |
| Max Output Voltage | 1.2V |
| Min Output Voltage | 1.2V |
| Max Power Dissipation | 1.59W |
| Nominal Output Voltage | 1.2V |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 1A |
| Output Type | Fixed |
| Output Voltage | 1.2V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Dissipation | 1.59W |
| Power Supply Rejection Ratio (PSRR) | 75dB |
| Quiescent Current | 50uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Width | 3.7mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TLV1117LV12DCYR Datasheet
Download the complete datasheet for Texas Instruments TLV1117LV12DCYR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

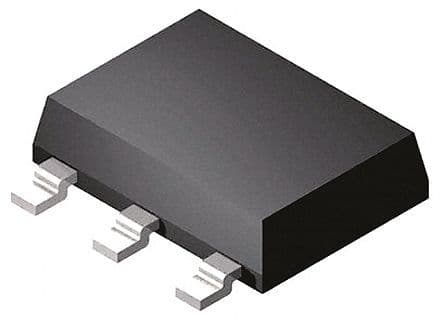

Product Images
