1-A positive fixed output linear voltage regulator with 1.8V nominal output voltage. Features a low dropout voltage of 570mV and a maximum input voltage of 5.5V. Operates within a temperature range of -40°C to 125°C with 2% accuracy. Packaged in a 4-SOT-223 surface-mount case, measuring 6.7mm x 3.7mm x 1.7mm. RoHS compliant and lead-free.
PackageSOT-223
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TLV1117LV18DCYR technical specifications.
General
| Accuracy | 2% |
| Package/Case | SOT-223 |
| Dropout Voltage | 570mV |
| Height | 1.7mm |
| Lead Free | Lead Free |
| Length | 6.7mm |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1A |
| Max Output Voltage | 1.8V |
| Min Output Voltage | 1.8V |
| Max Power Dissipation | 1.59W |
| Nominal Output Voltage | 1.8V |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 1A |
| Output Type | Fixed |
| Output Voltage | 1.8V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 75dB |
| Quiescent Current | 50uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Width | 3.7mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TLV1117LV18DCYR Datasheet
Download the complete datasheet for Texas Instruments TLV1117LV18DCYR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

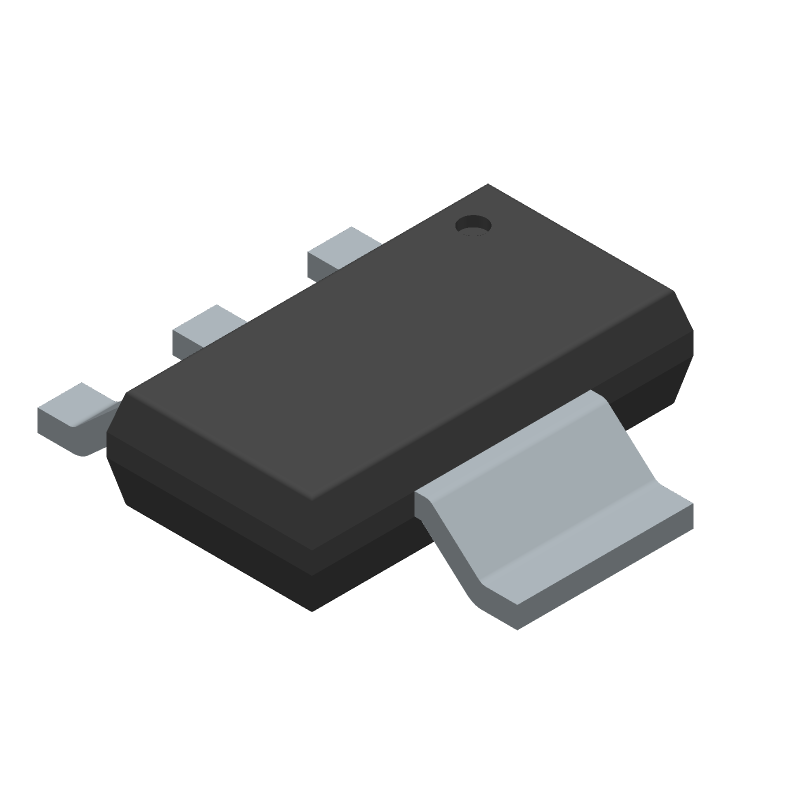

Product Images
