Dual operational amplifier featuring rail-to-rail output and a 670kHz bandwidth. This general-purpose amplifier offers a 710kHz gain bandwidth product, 300µV input offset voltage, and 60pA input bias current. Operating from 1.35V to 4V dual supply or 2.7V to 8V single supply, it provides 50mA output current per channel. Packaged in an 8-TSSOP, this RoHS compliant component operates across a -40°C to 125°C temperature range.
PackageTSSOP
Current500uA
Quick Jump:
Technical Specifications
Texas Instruments TLV2262AIPW technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 670kHz |
| Package/Case | TSSOP |
| Common Mode Rejection Ratio | 65dB |
| Gain Bandwidth Product | 710kHz |
| Input Bias Current | 60pA |
| Input Offset Voltage (Vos) | 300uV |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 4V |
| Min Dual Supply Voltage | 1.35V |
| Max I/O Voltage | 950uV |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 8V |
| Min Supply Voltage | 2.7V |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Operating Supply Current | 400uA |
| Operating Supply Voltage | 4V |
| Output Current | 50mA |
| Output Current per Channel | 50mA |
| Package Quantity | 150 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | LinCMOS™ |
| Slew Rate | 0.55V/µs |
| Supply Current | 500uA |
| Voltage Gain | 114.81dB |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TLV2262AIPW Datasheet
Download the complete datasheet for Texas Instruments TLV2262AIPW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

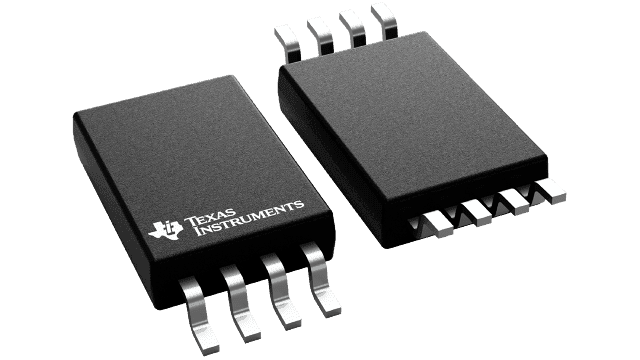

Product Images
