TLV2371IP

Datasheet

Single Op Amp, 3MHz GBW, 2.4MHz BW, 1.35-16V, 750uA, 8-PDIP

Texas Instruments

TLV2371IP

Name: TLV2371IP Texas Instruments
Brand: Texas Instruments
SKU: TLV2371IP

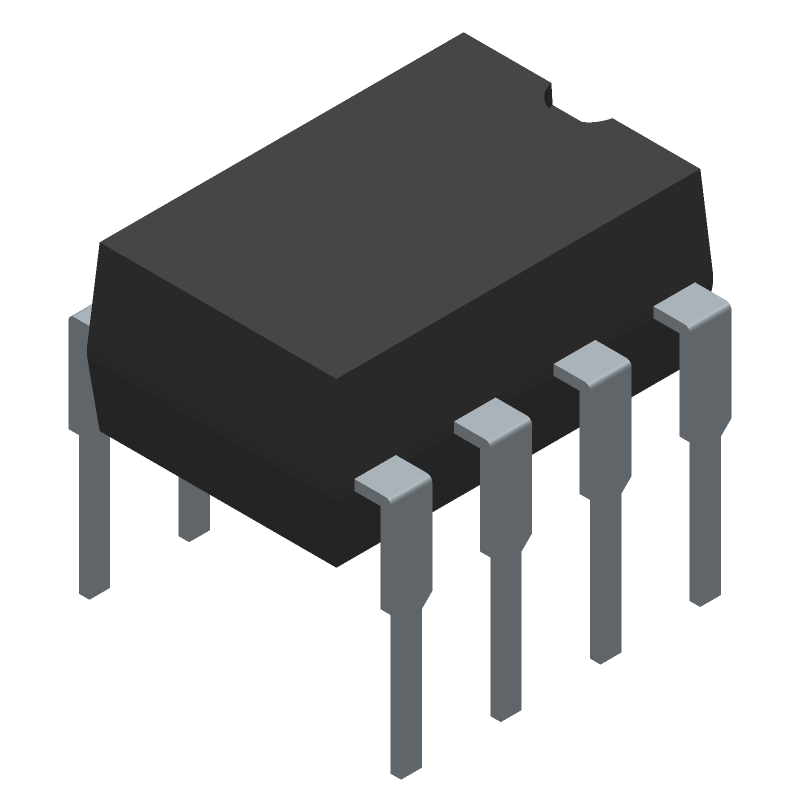

Single Op Amp, 3MHz GBW, 2.4MHz BW, 1.35-16V, 750uA, 8-PDIP

Single-channel, general-purpose operational amplifier with a 3MHz gain bandwidth product and 2.4MHz bandwidth. Features Rail-to-Rail Input/Output (RRIO) operation, a low 550µA/channel supply current, and a 2.4V/µs slew rate. Operates from a minimum supply voltage of 1.35V to a maximum of 16V, with a typical operating supply voltage of 8V. Offers a high voltage gain of 110dB and a common mode rejection ratio of 50dB. Packaged in an 8-pin PDIP with a temperature range of -40°C to 125°C.

Frequency21kHz

PackageP

Current900uA

Power1.2W

Quick Jump:

Technical Specifications

Texas Instruments TLV2371IP technical specifications.

General

Amplifier Type	GENERAL PURPOSE
Bandwidth	2.4MHz
Package/Case	P
Common Mode Rejection Ratio	50dB
Gain Bandwidth Product	3MHz
Height	4.57mm
Input Bias Current	60pA
Input Offset Voltage (Vos)	4.5mV
Lead Free	Lead Free
Length	10.16mm
Max Dual Supply Voltage	8V
Min Dual Supply Voltage	1.35V
Max Frequency	21kHz
Max I/O Voltage	4.5mV
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
Max Supply Voltage	16V
Min Supply Voltage	2.7V
Nominal Gain Bandwidth Product	3MHz
Number of Amplifiers	1
Number of Channels	1
Number of Circuits	1
Number of Elements	1
Operating Supply Current	750uA
Operating Supply Voltage	8V
Output Current	16mA
Output Current per Channel	16mA
Package Quantity	50
Packaging	Rail/Tube
Power Dissipation	1.2W
Power Supply Rejection Ratio (PSRR)	70dB
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Slew Rate	2.4V/µs
Supply Current	900uA
Unity Gain Bandwidth Product	3MHz
Voltage Gain	110dB
Width	6.6mm
