Quad rail-to-rail input/output operational amplifier featuring a 2.8MHz gain bandwidth product and 1.4V/µs slew rate. This general-purpose amplifier operates from a 1.35V to 6V supply voltage range, with a typical operating supply current of 600µA. It offers 35mA output current per channel and boasts a high voltage gain of 120dB with a 61dB common mode rejection ratio. Packaged in a 14-HTSSOP, this lead-free and RoHS-compliant component is suitable for operation between -40°C and 125°C.
PackageHTSSOP
Current3.6mA
Power4.07W
Quick Jump:
Technical Specifications
Texas Instruments TLV2474IPWP technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 2.8MHz |
| Package/Case | HTSSOP |
| Common Mode Rejection Ratio | 61dB |
| Gain Bandwidth Product | 2.8MHz |
| Input Bias Current | 50pA |
| Input Offset Voltage (Vos) | 2.2mV |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 3V |
| Min Dual Supply Voltage | 1.35V |
| Max I/O Voltage | 2.2mV |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2.7V |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Operating Supply Current | 600uA |
| Operating Supply Voltage | 3V |
| Output Current | 35mA |
| Output Current per Channel | 35mA |
| Package Quantity | 90 |
| Packaging | Rail/Tube |
| Power Dissipation | 4.07W |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Slew Rate | 1.4V/µs |
| Supply Current | 3.6mA |
| Technology | CMOS |
| Unity Gain Bandwidth Product | 2.8MHz |
| Voltage Gain | 120dB |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TLV2474IPWP Datasheet
Download the complete datasheet for Texas Instruments TLV2474IPWP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

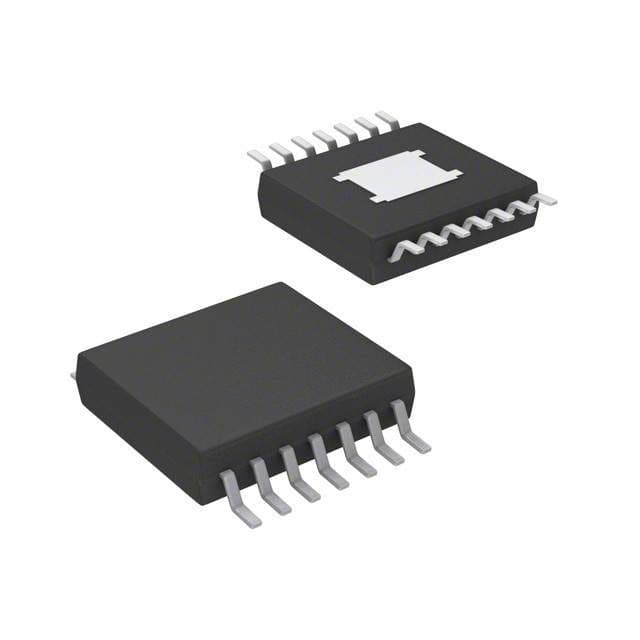

Product Images
