Dual operational amplifier featuring rail-to-rail output, a 3MHz bandwidth, and a 2.1V/µs slew rate. This CMOS amplifier operates from a minimum supply voltage of 1.35V up to a maximum of 16V, with a nominal dual supply voltage of 5V. Key specifications include a 60pA input bias current, 5mV input offset voltage, and 110dB voltage gain. The device is housed in a VSSOP package, offering 58dB CMRR and 70dB PSRR, with an operating temperature range of -40°C to 125°C.
PackageVSSOP
Current1.6mA
Power250mW
Quick Jump:
Technical Specifications
Texas Instruments TLV272IDGKR technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 3MHz |
| Package/Case | VSSOP |
| Common Mode Rejection Ratio | 58dB |
| Dual Supply Voltage | 5V |
| Gain Bandwidth Product | 3MHz |
| Input Bias Current | 60pA |
| Input Offset Voltage (Vos) | 5mV |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 8V |
| Min Dual Supply Voltage | 1.35V |
| Max I/O Voltage | 5mV |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 16V |
| Min Supply Voltage | 2.7V |
| Nominal Gain Bandwidth Product | 2.4MHz |
| Number of Amplifiers | 2 |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Operating Supply Current | 625uA |
| Operating Supply Voltage | 8V |
| Output Current | 13mA |
| Output Current per Channel | 13mA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 250mW |
| Power Supply Rejection Ratio (PSRR) | 70dB |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 2.1V/µs |
| Supply Current | 1.6mA |
| Technology | CMOS |
| Unity Gain Bandwidth Product | 3MHz |
| Voltage Gain | 110dB |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TLV272IDGKR Datasheet
Download the complete datasheet for Texas Instruments TLV272IDGKR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

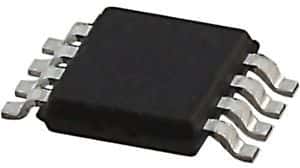

Product Images
