Dual operational amplifier featuring rail-to-rail output, a 3MHz bandwidth, and a 2.1V/µs slew rate. This general-purpose amplifier operates with a supply voltage range of 2.7V to 16V, consuming 625µA per channel. Key specifications include a 58dB CMRR and 70dB PSRR, with a low input bias current of 60pA. The 8-pin PDIP package offers a wide operating temperature range of -40°C to 125°C.
PackageP
Current1.6mA
Power625mW
Quick Jump:
Technical Specifications
Texas Instruments TLV272IP technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
3MHz
Package/Case
P
Common Mode Rejection Ratio
58dB
Dual Supply Voltage
5V
Gain Bandwidth Product
3MHz
Height
4.57mm
Input Bias Current
60pA
Input Offset Voltage (Vos)
5mV
Lead Free
Lead Free
Length
9.81mm
Max Dual Supply Voltage
8V
Min Dual Supply Voltage
1.35V
Max I/O Voltage
5mV
Max Input Voltage
16V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
16V
Min Supply Voltage
2.7V
Nominal Gain Bandwidth Product
2.4MHz
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
625uA
Operating Supply Voltage
5V
Output Current
13mA
Output Current per Channel
13mA
Package Quantity
50
Packaging
Rail/Tube
Power Dissipation
625mW
Power Supply Rejection Ratio (PSRR)
70dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
2.1V/µs
Supply Current
1.6mA
Technology
CMOS
Unity Gain Bandwidth Product
3MHz
Voltage Gain
110dB
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TLV272IP Datasheet
Download the complete datasheet for Texas Instruments TLV272IP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

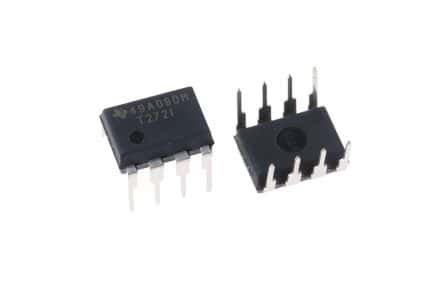

Product Images
