Voiceband audio codec featuring 1 analog-to-digital converter (ADC) channel and 1 digital-to-analog converter (DAC) channel. Offers 16-bit resolution with a sampling rate of 104 kS/s and an 84dB signal-to-noise ratio. Supports serial, I2C, I2S, 2-wire, and 4-wire interfaces. Operates within a supply voltage range of 1.1V to 3.6V and a temperature range of -40°C to 85°C. Packaged in a 30-pin TSSOP, this RoHS compliant component consumes 11.2mW.
PackageTSSOP
Power11.2mW
Quick Jump:
Technical Specifications
Texas Instruments TLV320AIC14KIDBT technical specifications.
General
Package/Case
TSSOP
Interface
Serial, I2C, I2S, 2-Wire, 4-WIRE
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
1.1V
Number of A/D Converters
1
Number of ADC Channels
1
Number of Analog Inputs
3
Number of Analog Outputs
1
Number of Bits
16
Number of Channels
1
Number of D/A Converters
1
Number of DAC Channels
1
Package Quantity
60
Packaging
Rail/Tube
Power Consumption
11.2mW
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
16b
RoHS Compliant
Yes
Sampling Rate
104KS/s
Signal to Noise Ratio (SNR)
84dB
Weight
0.003439oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TLV320AIC14KIDBT Datasheet
Download the complete datasheet for Texas Instruments TLV320AIC14KIDBT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

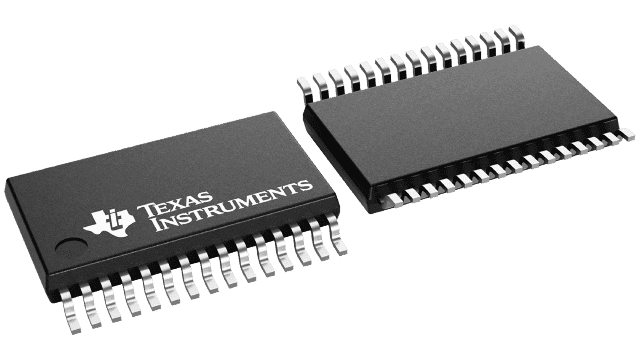

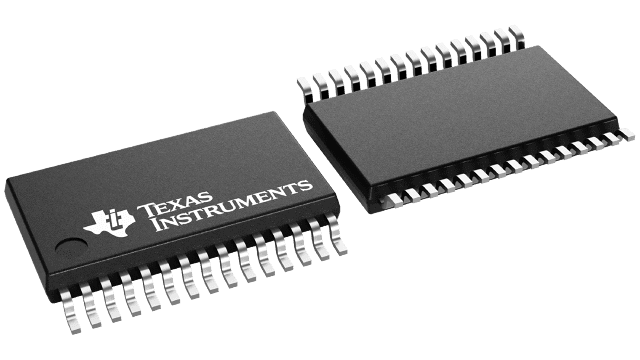

Product Images
