General purpose audio codec featuring 2 analog-to-digital converters (ADCs) and 2 digital-to-analog converters (DACs), each with 24-bit resolution and a 96 kS/s sampling rate. Supports I2C, SPI, and serial 2-wire interfaces, offering up to 10 analog inputs and 7 analog outputs. Delivers 500mW maximum output power with a wide operating voltage range of 1.1V to 3.6V. Operates across a temperature range of -40°C to 85°C, with a typical power consumption of 14mW. Packaged in a VFBGA with 360 units per tray.
PackageVFBGA
Power14mW
Quick Jump:
Technical Specifications
Texas Instruments TLV320AIC33IGQE technical specifications.
General
Package/Case
VFBGA
Interface
I2C, SPI, Serial, 2-Wire
Lead Free
Contains Lead
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Power
500mW
Max Supply Voltage
3.6V
Min Supply Voltage
1.1V
Number of A/D Converters
2
Number of ADC Channels
2
Number of Analog Inputs
10
Number of Analog Outputs
7
Number of Bits
24
Number of Channels
2
Number of D/A Converters
2
Number of DAC Channels
2
Package Quantity
360
Packaging
Tray
Power Consumption
14mW
Radiation Hardening
No
Resolution
24b
RoHS Compliant
No
Sampling Rate
96KS/s
Signal to Noise Ratio (SNR)
92dB
Type
General Purpose
Weight
0.001771oz
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments TLV320AIC33IGQE Datasheet
Download the complete datasheet for Texas Instruments TLV320AIC33IGQE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

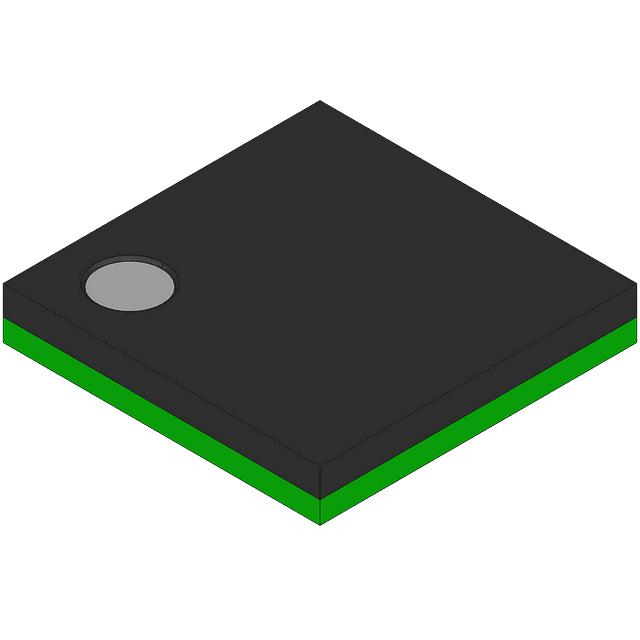

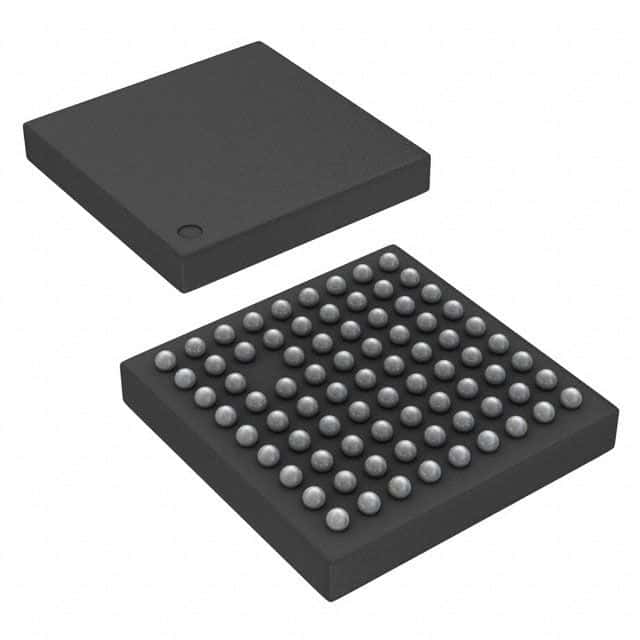

Product Images
