Automotive 2-channel rail-to-rail comparator, featuring a 4.5ns response time and 10ns propagation delay. This CMOS device operates from a 2.2V to 5.5V supply range, with a typical operating voltage of 2.7V. Key specifications include 80dB CMRR and PSRR, 6mV hysteresis, and low input bias/offset currents of 10pA and 6.5mV respectively. Packaged in an 8-SOT-23 for surface mounting, it supports TTL and Push-Pull outputs and is RoHS compliant.
PackageSOT-23-8
Current5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TLV3502AQDCNRQ1 technical specifications.
General
| Package/Case | SOT-23-8 |
| Common Mode Rejection Ratio | 80dB |
| Hysteresis | 6mV |
| Input Bias Current | 10pA |
| Input Offset Voltage (Vos) | 6.5mV |
| Lead Free | Lead Free |
| Max Input Current | 10pA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 5mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.2V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Elements | 2 |
| Operating Supply Voltage | 2.7V |
| Output Type | TTL, PUSH-PULL |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 80dB |
| Propagation Delay | 10ns |
| Quiescent Current | 5mA |
| Radiation Hardening | No |
| Response Time | 0.0045us |
| RoHS Compliant | Yes |
| Supply Current | 5mA |
| Technology | CMOS |
| Type | General Purpose |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TLV3502AQDCNRQ1 Datasheet
Download the complete datasheet for Texas Instruments TLV3502AQDCNRQ1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

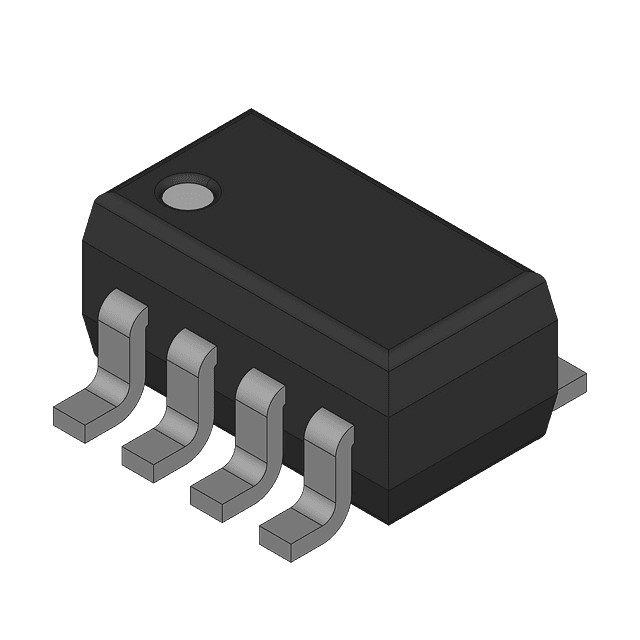

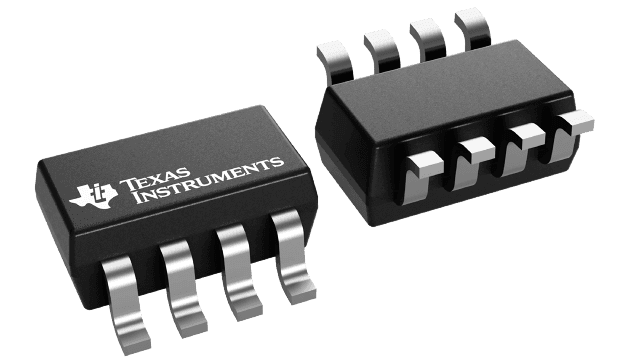

Product Images
