12-bit, 8-channel serial Digital-to-Analog Converter (DAC) operating from a 2.7V to 5.5V supply. Features a 283KS/s conversion rate, 1LSB differential nonlinearity, and 6LSB integral nonlinearity. SPI interface enables efficient communication. Unipolar voltage output with a 1µs settling time. Packaged in a 20-SOIC for operation between -40°C and 85°C.
PackageSOIC
Power18mW
Quick Jump:
Technical Specifications
Texas Instruments TLV5610IDW technical specifications.
General
Package/Case
SOIC
Conversion Rate
283KS/s
Differential Nonlinearity
1LSB
Height
2.35mm
Integral Nonlinearity (INL)
6LSB
Interface
SPI
Lead Free
Lead Free
Length
12.8mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Number of Bits
12
Number of Channels
8
Number of Converters
8
Number of DAC Channels
8
Number of Outputs
8
Operating Supply Voltage
5V
Output Polarity
Unipolar
Output Type
Voltage
Package Quantity
25
Packaging
Rail/Tube
Power Consumption
18mW
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
283KS/s
Series
TLV5610
Settling Time
1us
Supply Type
Analog, Digital
Weight
0.018953oz
Width
7.52mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TLV5610IDW Datasheet
Download the complete datasheet for Texas Instruments TLV5610IDW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

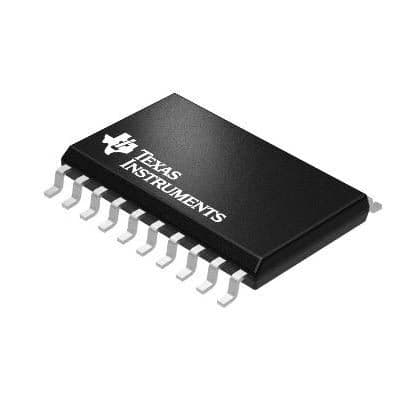

Product Images
