Octal Digital-to-Analog Converter (DAC) with 12-bit resolution, featuring 8 DAC channels and 8 converters. Operates from a 2.7V to 5.5V supply voltage with a nominal supply current of 16mA and a maximum power dissipation of 18mW. Offers a conversion rate of 283 kS/s and an integral nonlinearity of 6 LSB. Utilizes an SPI interface for communication and has a settling time of 7µs. Packaged as a wafer chip scale die for surface mounting, with an operating temperature range of -40°C to 85°C.
PackageDIE
MountingSurface Mount
Power18mW
Quick Jump:
Technical Specifications
Texas Instruments TLV5610IYE technical specifications.
General
| Package/Case | DIE |
| Conversion Rate | 283KS/s |
| Integral Nonlinearity (INL) | 6LSB |
| Interface | SPI |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 18mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Nominal Supply Current | 16mA |
| Number of Bits | 12 |
| Number of Channels | 8 |
| Number of Converters | 8 |
| Number of DAC Channels | 8 |
| Output Type | Voltage |
| Package Quantity | 150 |
| Packaging | Rail/Tube |
| Power Consumption | 18mW |
| Resolution | 12b |
| RoHS Compliant | No |
| Sampling Rate | 283000S/s |
| Series | TLV5610IYE |
| Settling Time | 7us |
| Supply Type | Analog, Digital |
Compliance
| RoHS | Not Compliant |
Datasheet
Texas Instruments TLV5610IYE Datasheet
Download the complete datasheet for Texas Instruments TLV5610IYE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

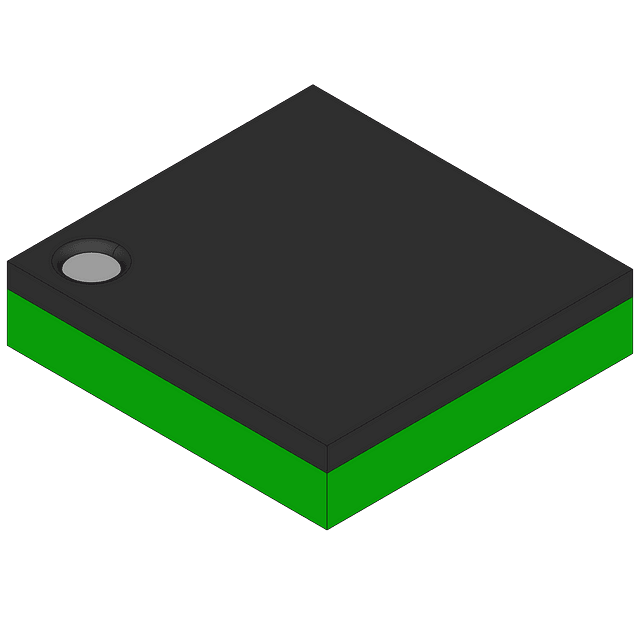

Product Images
