12-bit octal digital-to-analog converter (DAC) featuring 8 DAC channels with a conversion rate of 283 kS/s. Operates from a 2.7V to 5.5V supply voltage, consuming a nominal 16mA supply current and a maximum power dissipation of 18mW. Offers an SPI interface and voltage output, with a settling time of 7µs. Integral nonlinearity is rated at 6 LSB, and the device operates across a temperature range of -40°C to 85°C. Packaged in a wafer chip scale package (20-DSBGA), this RoHS compliant component is suitable for surface mounting.
PackageDIE
MountingSurface Mount
Power18mW
Quick Jump:
Technical Specifications
Texas Instruments TLV5610IYZT technical specifications.
General
| Package/Case | DIE |
| Conversion Rate | 283KS/s |
| Integral Nonlinearity (INL) | 6LSB |
| Interface | SPI |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 18mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Nominal Supply Current | 16mA |
| Number of Bits | 12 |
| Number of Channels | 8 |
| Number of Converters | 8 |
| Number of DAC Channels | 8 |
| Output Type | SERIAL, Voltage |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Power Consumption | 18mW |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 283000S/s |
| Series | TLV5610IYZ |
| Settling Time | 7us |
| Supply Type | Analog, Digital |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TLV5610IYZT Datasheet
Download the complete datasheet for Texas Instruments TLV5610IYZT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

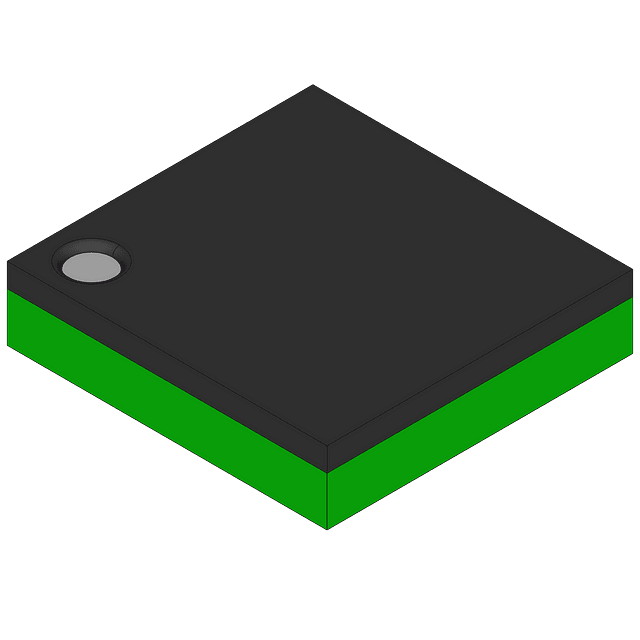

Product Images
