Texas Instruments
TLV62084DSGR
2A High Efficient Step Down Converter in 2x2mm SON Package 8-WSON -40 to 125
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TLV62084DSGR technical specifications.
General
| Lead Free | Lead Free |
| Max Input Voltage | 6V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 4V |
| Min Output Voltage | 500mV |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 2A |
| Output Type | Adjustable |
| Output Voltage | 4V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Quiescent Current | 30uA |
| RoHS Compliant | Yes |
| Series | DCS-Control™ |
| Synchronous Rectifier | Yes |
| Weight | 0.000384oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TLV62084DSGR Datasheet
Download the complete datasheet for Texas Instruments TLV62084DSGR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

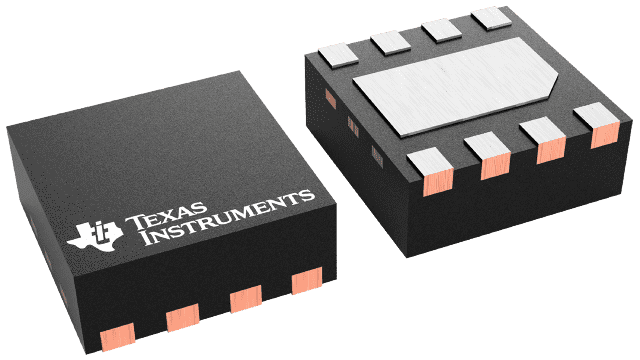

Product Images
