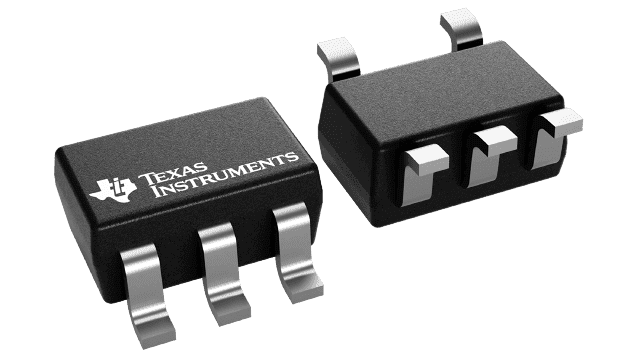

The TLV70028DCKR is a single-output linear voltage regulator with an output voltage of 2.8V and a maximum output current of 200mA. It has a dropout voltage of 175mV and a maximum power dissipation of 320mW. The device is packaged in a 5-pin SC-70 package and is RoHS compliant. It operates over a temperature range of -40°C to 125°C and has a quiescent current of 30uA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments TLV70028DCKR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Accuracy | 2% |
| Package/Case | SC |
| Dropout Voltage | 175mV |
| Lead Free | Lead Free |
| Min Current Limit | 220mA |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 200mA |
| Max Output Voltage | 2.8V |
| Min Output Voltage | 2.8V |
| Max Power Dissipation | 320mW |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 200mA |
| Output Type | Fixed |
| Output Voltage | 2.8V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Quiescent Current | 30uA |
| RoHS Compliant | Yes |
| RoHS | Compliant |
