Ultra-low-IQ, fixed 5V output linear voltage regulator, delivering 150mA maximum output current with 2% accuracy. Features a low dropout voltage of 850mV and a wide input voltage range from 2.5V to 24V. Operates across an extended temperature range of -40°C to 125°C. Housed in a compact SOT-23 package, this RoHS compliant component offers a quiescent current of 3µA and a maximum supply current of 5.5µA.
PackageSOT-23
PolarityPositive
Power470mW
Quick Jump:
Technical Specifications
Texas Instruments TLV70450DBVT technical specifications.
General
| Accuracy | 2% |
| Package/Case | SOT-23 |
| Dropout Voltage | 850mV |
| Height | 1.3mm |
| Lead Free | Lead Free |
| Length | 3.05mm |
| Max Input Voltage | 24V |
| Min Input Voltage | 2.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 150mA |
| Max Output Voltage | 5V |
| Min Output Voltage | 5V |
| Max Power Dissipation | 470mW |
| Max Supply Current | 5.5uA |
| Nominal Output Voltage | 5V |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 150mA |
| Output Type | Fixed, Adjustable |
| Output Voltage | 5V |
| Output Voltage Accuracy | 2% |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Dissipation | 470mW |
| Power Supply Rejection Ratio (PSRR) | 60dB |
| Quiescent Current | 3uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reference Voltage | 1.205V |
| RoHS Compliant | Yes |
| Thickness | 1.2mm |
| Width | 1.75mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TLV70450DBVT Datasheet
Download the complete datasheet for Texas Instruments TLV70450DBVT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

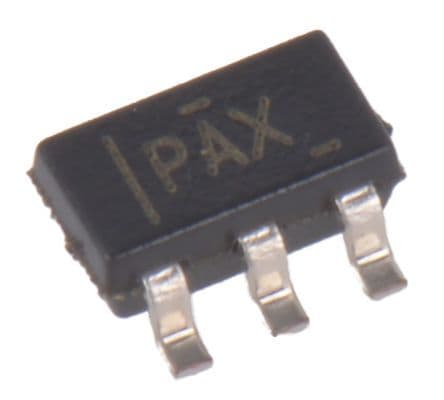

Product Images
