Texas Instruments
TLV70518PYFPR
200-mA, high-PSRR, low-IQ, low-dropout voltage regulator with enable & active output discharge 4-DSBGA -40 to 125
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TLV70518PYFPR technical specifications.
General
| Accuracy | 0.5% |
| Dropout Voltage | 220mV |
| Lead Free | Lead Free |
| Min Current Limit | 260mA |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 550mA |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 200mA |
| Output Type | Fixed |
| Output Voltage | 1.8V |
| Package Quantity | 3000 |
| Packaging | Cut Tape |
| Polarity | Positive |
| Quiescent Current | 55uA |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TLV70518PYFPR Datasheet
Download the complete datasheet for Texas Instruments TLV70518PYFPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

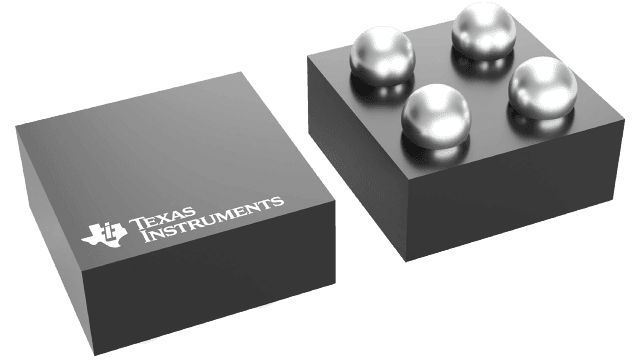

Product Images
