Dual-channel, 200mA fixed output linear voltage regulator with 2% accuracy. Features low 30uA quiescent current and 50dB PSRR. Operates from 2V to 5.5V input, providing up to 4.8V output. Housed in a compact 1.5mm x 1.5mm x 800um WFDFN package, suitable for -40°C to 125°C operation. Lead-free and RoHS compliant.
PackageWFDFN
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TLV7101828DSER technical specifications.
General
| Accuracy | 2% |
| Package/Case | WFDFN |
| Height | 800um |
| Lead Free | Lead Free |
| Length | 1.5mm |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 200mA |
| Max Output Voltage | 4.8V |
| Min Output Voltage | 700mV |
| Max Power Dissipation | 585mW |
| Number of Outputs | 2 |
| Number of Regulators | 2 |
| Output Configuration | Positive |
| Output Current | 200mA |
| Output Type | Fixed |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 50dB |
| Quiescent Current | 30uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Thickness | 750um |
| Width | 1.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TLV7101828DSER Datasheet
Download the complete datasheet for Texas Instruments TLV7101828DSER to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

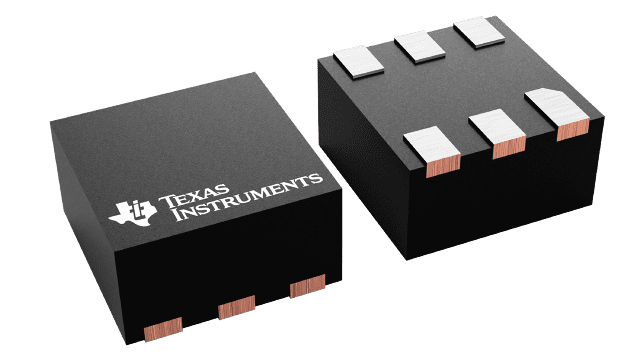

Product Images
