Dual-channel, positive, fixed output linear voltage regulator, offering 2.85V and 1.8V outputs, each with a 200mA maximum output current. Features a low dropout voltage of 150mV and high power supply rejection ratio (PSRR). Operates from a 2V to 5.5V input voltage range with a quiescent current of 30µA. Packaged in a 6-WSON, this RoHS compliant component is suitable for operation between -40°C and 125°C.
PackageWFDFN
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TLV71128518DDSER technical specifications.
General
| Accuracy | 2% |
| Package/Case | WFDFN |
| Current - Output 1 | 200mA |
| Current - Output 2 | 200mA |
| Dropout Voltage | 150mV |
| Lead Free | Lead Free |
| Min Current Limit | 220mA |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 200mA |
| Max Power Dissipation | 585mW |
| Number of Outputs | 2 |
| Number of Regulators | 2 |
| Output Current | 200mA |
| Output Type | Fixed |
| Output Voltage | 1.8V |
| Output Voltage Accuracy | 2% |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Quiescent Current | 30uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Voltage - Output 1 | 2.85V |
| Voltage - Output 2 | 1.8V |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TLV71128518DDSER Datasheet
Download the complete datasheet for Texas Instruments TLV71128518DDSER to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

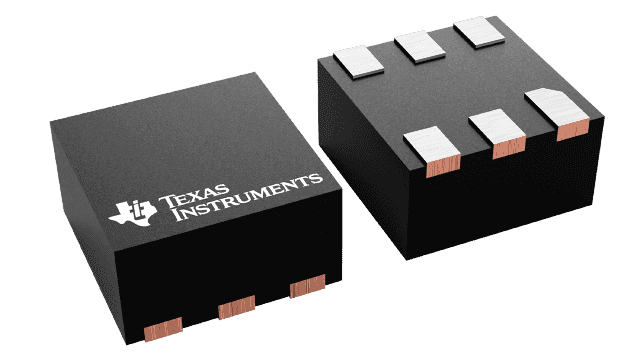

Product Images
