10-bit, 28 MSPS, 1-channel Analog Front End (AFE) for CCD sensors. Features a 3V operating supply voltage, with a range of 1.8V to 4.4V. Offers a 1.5V reference voltage and a serial, 3-wire interface. Packaged in a 48-TQFP (7mm x 7mm x 1mm) for surface mounting. Operates within a temperature range of -20°C to 75°C, with a maximum power dissipation of 150mW. RoHS compliant and lead-free.
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TLV990-28PFB technical specifications.
General
| Package/Case | TQFP |
| Height | 1mm |
| Interface | Serial, 3-WIRE |
| Lead Free | Lead Free |
| Length | 7mm |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | -20°C |
| Max Power Dissipation | 150mW |
| Max Supply Voltage | 4.4V |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of Bits | 10 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Operating Supply Voltage | 3V |
| Package Quantity | 250 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reference Voltage | 1.5V |
| Resolution | 10b |
| RoHS Compliant | Yes |
| Sampling Rate | 28MS/s |
| Series | TLV990-28 |
| Thickness | 1mm |
| Weight | 0.004938oz |
| Width | 7mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TLV990-28PFB Datasheet
Download the complete datasheet for Texas Instruments TLV990-28PFB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

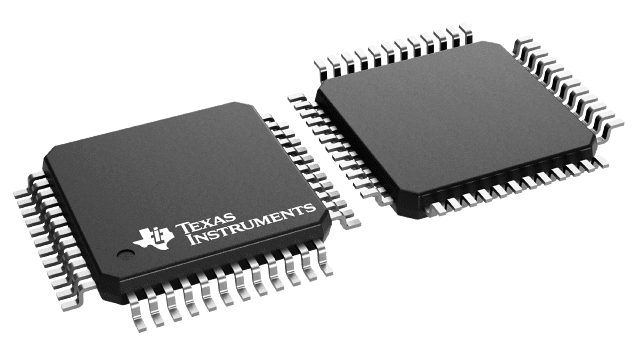

Product Images
