Texas Instruments
TM4C1231H6PGEI7
32-bit ARM Cortex-M4F MCU, 80MHz, 256KB Flash, 32KB RAM, 105 I/O, LQFP
High-performance 32-bit ARM Cortex-M4F microcontroller featuring 256KB FLASH and 32KB RAM. Operates at up to 80MHz with 105 programmable I/Os and 24 12-bit A/D converters. Includes I2C, SPI, UART, CAN, and other interfaces, with integrated peripherals like DMA, POR, and WDT. Surface mountable in a 144-LQFP package, this RoHS compliant MCU offers a wide operating temperature range of -40°C to 85°C.
Frequency80MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TM4C1231H6PGEI7 technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Interface
I2C, SPI, IrDA, UART, USART, CAN
Lead Free
Lead Free
Max Frequency
80MHz
Max Operating Temperature
85°C
Memory Size
256KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of A/D Converters
24
Number of ADC Channels
24
Number of Bits
12
Number of GPIO
105
Number of I/Os
105
Number of Programmable I/O
105
Number of Timers/Counters
12
Number of UART Channels
8
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, WDT, DMA
RAM Size
32KB
RoHS Compliant
Yes
Series
Tiva™ C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TM4C1231H6PGEI7 Datasheet
Download the complete datasheet for Texas Instruments TM4C1231H6PGEI7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

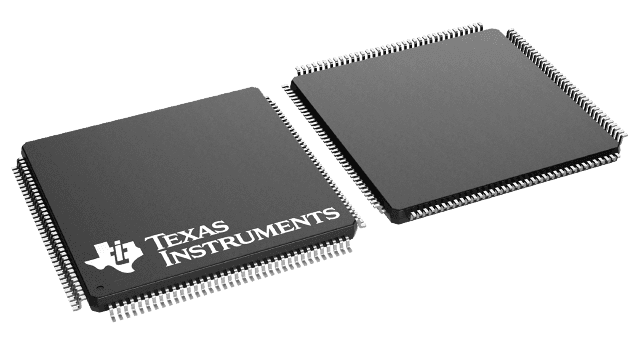

Product Images
