32-bit ARM RISC microcontroller featuring an 80MHz core frequency. This surface mount LQFP package offers 256KB of FLASH memory and 32KB of RAM, with 105 programmable I/Os. Integrated peripherals include I2C, CAN, UART (8 channels), SPI, IrDA, USART, USB, I2S, 12 timers/counters, and 24 A/D converters. Operates from 3.15V to 3.63V with an internal oscillator, and supports a temperature range of -40°C to 85°C. Includes Brown-out Detect/Reset, POR, WDT, and DMA.
Frequency80MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TM4C1231H6PGEIR technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Frequency
80MHz
Interface
I2C, CAN, UART, SPI, IrDA, USART, USB, I2S
Lead Free
Lead Free
Max Frequency
80MHz
Max Operating Temperature
85°C
Memory Size
256KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.63V
Min Supply Voltage
3.15V
Mount
Surface Mount
Number of A/D Converters
24
Number of ADC Channels
24
Number of I/Os
105
Number of Programmable I/O
105
Number of Timers/Counters
12
Number of UART Channels
8
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
500
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, WDT, DMA
Radiation Hardening
No
RAM Size
32KB
RoHS Compliant
Yes
Series
Tiva™ C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TM4C1231H6PGEIR Datasheet
Download the complete datasheet for Texas Instruments TM4C1231H6PGEIR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

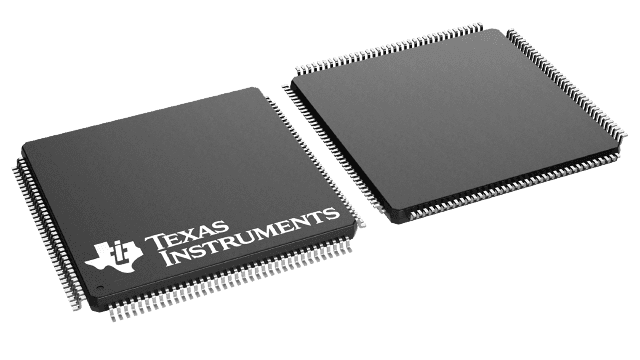

Product Images
