32-bit ARM RISC microcontroller featuring 256KB FLASH memory and 32KB RAM. Operates at up to 80MHz with a 3.3V supply voltage, ranging from 3.15V to 3.63V. Offers 43 programmable I/Os and includes 12-bit Analog-to-Digital converters with 12 channels. Supports multiple interfaces including I2C, CAN, UART, SPI, USB, and I2S. Packaged in LQFP for surface mounting, this RoHS compliant component operates from -40°C to 85°C.
Frequency80MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TM4C1231H6PMIR technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Frequency
80MHz
Interface
I2C, CAN, UART, SPI, IrDA, USART, USB, I2S
Lead Free
Lead Free
Max Frequency
80MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.63V
Memory Size
256KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3.15V
Mount
Surface Mount
Number of A/D Converters
12
Number of ADC Channels
12
Number of Bits
12
Number of I/Os
43
Number of Programmable I/O
43
Number of Timers/Counters
12
Number of UART Channels
8
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
1000
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, WDT, DMA
Radiation Hardening
No
RAM Size
32KB
RoHS Compliant
Yes
Series
Tiva™ C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TM4C1231H6PMIR Datasheet
Download the complete datasheet for Texas Instruments TM4C1231H6PMIR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

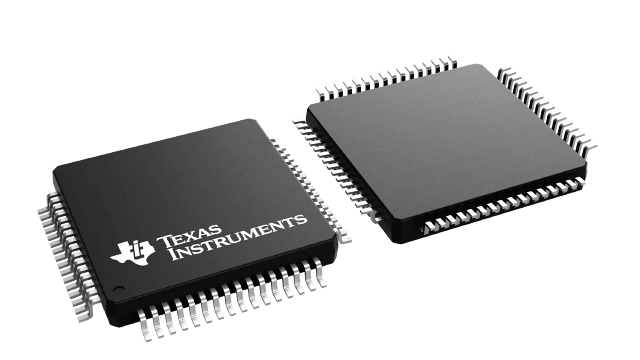

Product Images
