32-bit ARM RISC microcontroller featuring an 80MHz core frequency. This surface mount LQFP package offers 64KB FLASH memory, 24KB RAM, and 49 programmable I/O pins. Integrated peripherals include 12-bit ADC with 12 channels, 6 I2C, 4 SPI, 8 UART, 1 USB, CAN, I2S, and IrDA interfaces. Operates at 3.3V with internal oscillator and includes watchdog timer functionality.
Frequency80MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TM4C1236D5PMI technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Frequency
80MHz
Height
1.45mm
Interface
I2C, SPI, USB, IrDA, UART, USART, CAN, I2S
Lead Free
Lead Free
Length
10.2mm
Max Frequency
80MHz
Max Operating Temperature
85°C
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of A/D Converters
12
Number of ADC Channels
12
Number of I2C Channels
6
Number of Programmable I/O
49
Number of SPI Channels
4
Number of Timers/Counters
12
Number of UART Channels
8
Number of USB Channels
1
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, WDT, DMA
Radiation Hardening
No
RAM Size
24KB
RoHS Compliant
Yes
Series
Tiva™ C
Watchdog Timer
Yes
Width
10.2mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TM4C1236D5PMI Datasheet
Download the complete datasheet for Texas Instruments TM4C1236D5PMI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

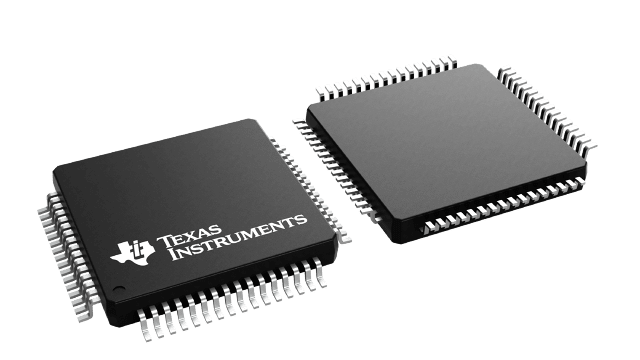

Product Images
