32-bit ARM RISC microcontroller featuring 256KB FLASH memory and 32KB RAM. Operates at up to 80MHz with a 3.3V supply voltage, supporting a temperature range of -40°C to 85°C. Offers extensive connectivity with I2C, USB, CAN, UART (8 channels), SPI, IrDA, USART, and I2S interfaces. Includes 12 A/D converters with 12 channels each, 49 I/Os, and 12 timers. Packaged in LQFP for surface mounting, this RoHS compliant component is supplied on tape and reel.
Frequency80MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TM4C1236H6PMIR technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Frequency
80MHz
Interface
I2C, USB, CAN, UART, SPI, IrDA, USART, I2S
Lead Free
Lead Free
Max Frequency
80MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.63V
Memory Size
256KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3.15V
Mount
Surface Mount
Number of A/D Converters
12
Number of ADC Channels
12
Number of Bits
12
Number of I/Os
49
Number of Programmable I/O
49
Number of Timers/Counters
12
Number of UART Channels
8
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
1000
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, WDT, DMA
Radiation Hardening
No
RAM Size
32KB
RoHS Compliant
Yes
Series
Tiva™ C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TM4C1236H6PMIR Datasheet
Download the complete datasheet for Texas Instruments TM4C1236H6PMIR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

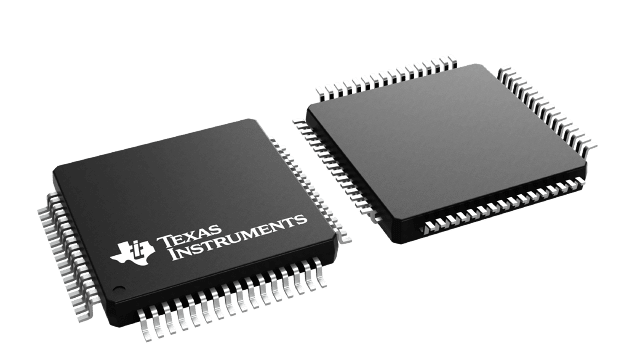

Product Images
