32-bit ARM RISC microcontroller featuring an 80MHz core frequency. Offers 256KB FLASH memory and 32KB RAM. Supports I2C, USB, CAN, UART, SPI, IrDA, USART, and I2S interfaces. Includes 24 12-bit A/D converters and 105 programmable I/Os. Operates from a 3.15V to 3.63V supply, with a temperature range of -40°C to 85°C. Surface mount LQFP package with internal oscillator and watchdog timer.
Frequency80MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TM4C1237H6PGEIR technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Frequency
80MHz
Interface
I2C, USB, CAN, UART, SPI, IrDA, USART, I2S
Lead Free
Lead Free
Max Frequency
80MHz
Max Operating Temperature
85°C
Memory Size
256KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.63V
Min Supply Voltage
3.15V
Mount
Surface Mount
Number of A/D Converters
24
Number of ADC Channels
24
Number of Bits
12
Number of I/Os
105
Number of Programmable I/O
105
Number of Timers/Counters
12
Number of UART Channels
8
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
1000
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, WDT, DMA
Radiation Hardening
No
RAM Size
32KB
RoHS Compliant
Yes
Series
Tiva™ C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TM4C1237H6PGEIR Datasheet
Download the complete datasheet for Texas Instruments TM4C1237H6PGEIR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

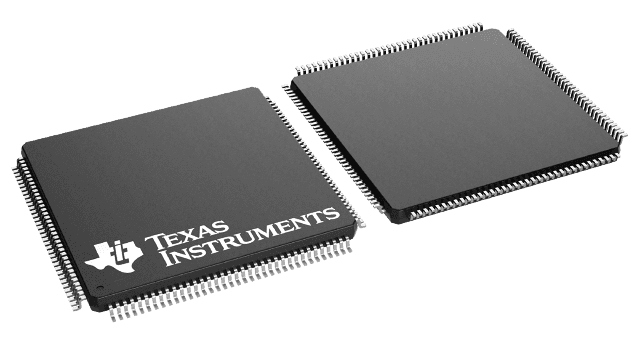

Product Images
